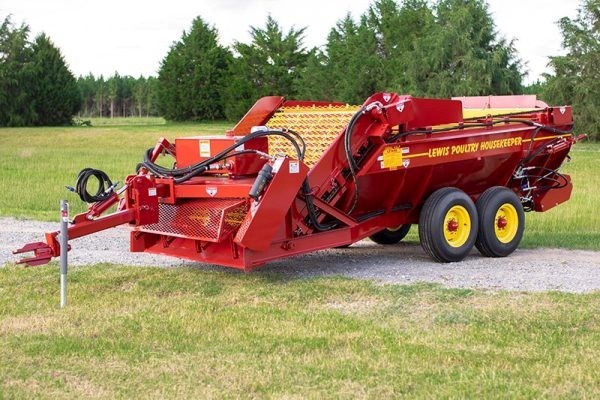

The Model 5LP has all the same innovative features of the #5, but with a ‘low-profile’ design for lower ceiling height applications.
Attach optional equipment to your Lewis Brothers products to make jobs easier, reduce work time, and ensure thorough cleaning. Replacement parts are available upon request from your local dealer.
The Hydraulic Tailgate is available on all units that spread and makes the unloading process faster and easier.
Available on model’s #2 & #3 and reduces repair cost by removing the need for belts and pulleys. The hydraulics deliver a more consistent torque which makes the machine operate more efficiently.
The optional spinner assembly is available on model’s #2, #3, #3.5, #4, #5 & #5LP and is just what you need to spread litter on fields or to apply fresh material to the house floor. The spinners can be removed when the job calls for unloading only.
The tandem axle is available on model’s #3.5, #4, #5, #5LP, #DB-2, #DB-2LP, #DB4 and the Spreader Body. The tandem axle provides a wider base and can absorb rough terrain.
| Working Height | 66″ |
| Overall Length | 22.5′ |
| Head Width | 69″ |
| Weight | 5800 lbs (empty) |
| Capacity | 135 cu. ft. |
| Tires | 12.5L x 16 |
| Tires (Tandem Optional) | 9.5L x 15 |
| Required PTO Horsepower | 60 HP |
| Hydraulic Oil | AW-68 |
| PTO Hydraulic Pump | 22 gpm |
| Oil Reservoir Capacity | 30 gal |
