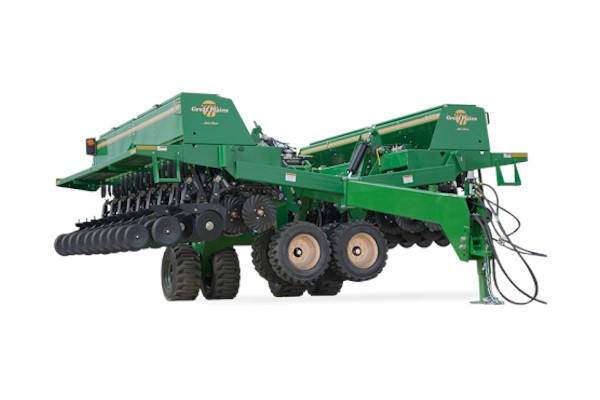

Great Plains 2N-2410
The field-proven 24' and 30' Pull-Type Drills from Great Plains are designed and built to handle the toughest no-till conditions. Featuring the Great Plains 10 Series opener and coulter combination, these two-section drills precisely place seed in the bottom of the seed trench for maximum emergence.
The direct link press wheel provides accurate depth control with 18 different depth settings, adjusted in 1/8" increments.The 2.1 bu./ft. seed box minimizes fill time while maximizing productivity. Plus, the drill’s wide, stable walkboard offers added convenience while filling. These units come standard with point-row clutches, allowing the operator to seed with one half of the drill width to save seed costs.
Options on these no-till drills include Keeton® seed firmers, a shaft monitor, flat-fold marker, seed box agitator, and two-bar coil tine harrow.
Shopping Tools
2N-2410 Features & Benefits
COULTER-ASSISTED OPENER SYSTEM
This system splits no-till seeding into two operations: penetration and seed placement. Preloaded at 450 lbs., coulters get the job done by working at the desired depth, ensuring optimum seed placement for a uniform stand. Increase coulter depth to penetrate hard, dry soils, or reduce coulter depth in soft conditions. This allows the 10 Series parallel linkage double-disc openers to properly place the seed. Seeding depth is set by the 18-position T-handle at the rear of the opener.
POINT-ROW CLUTCHES
Shuts off drill sections for point-row seeding.
USER-FRIENDLY FOLD SYSTEM
Fold and unfold electro-hydraulically from the tractor seat! Calibrate easily and accurately with the 4-speed gearbox and adjustable powdered metal flutes, which are gentle, yet tough enough to stand up to abrasive seeds. Conveniently grease hard-to-reach coulter pivots with grease banks on each wing to eliminate premature wear.
WEIGHT BRACKETS
Optional weight brackets allow you to add tractor weights for extra penetration.
HEAVY-DUTY TIRES
Eight skid steer tires help keep this beefy no-till drill on top of the ground and provide added protection against tire damage from BT corn stalks and other field hazards.
LEAD COULTER OPTIONS
Choose between a wide ¾" wavy blade, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily to perform minimum tillage.
PRESS WHEEL OPTIONS
Single press wheel choices include either 3"x13" double rib or center rib, or 2"x13" smooth. 1"x12" double-V press wheels are also an option.
T-HANDLE DEPTH CONTROL
T-handle offers 18 different positions for accurate depth control.
OPTIONAL SHAFT MONITOR
Economical way to monitor if the drill stops delivering seed.
OPTIONAL ROW MARKERS
Heavy-duty markers engineered to penetrate no-till residue and soil.
OPTIONAL SMALL SEEDS BOX
Mounts to the back of the main seed box to handle small seeds with ease.
OPTIONAL SEED FIRMER
Keeps the seed in the bottom of the trench as it firms it into the soil.
OPTIONAL SEED BOX AGITATOR
Eliminates bridging and provides consistent seed flow to the seed cups.
2N-2410 Specs & Compare
| MODEL INFO | 24' PULL-TYPE NO-TILL DRILL |
| MODEL | 2N-2410 |
| TYPE | 2-Section Folding |
| PRIMARY DESIGN | No-Till |
| ROW SPACINGS | 7.5", 10" |
| NUMBER OF OPENERS | 38 - 7.5" 28 - 10" |
| TIRE SIZE | 12Lx15 (wing) 12.5Lx15 (axle) |
| H.P. REQUIREMENTS (min) | 165+ |
| WEIGHT (approx. range) | 16,000-17,400 lbs (7,257-7,892kg) |
| DIMENSIONS | |
| WORKING WIDTH | 24' |
| WIDTH (transport) | 17' 1" |
| LENGTH (transport) | 21' 4" |
| CLEARANCE (transport) | 17" |
| HEIGHT (transport) | 8' 4" |
| OPENER SERIES | 10 Series |
| COULTER | 5/8" Turbo 5/16" Fluted 3/4" Wavy |
| CAPACITIES | |
| MAIN BOX CAPACITY | 48 bu |
| SMALL SEED BOX | 5.76 bu |
| NATIVE GRASS BOX | N/A |
| FERTILIZER | N/A |
