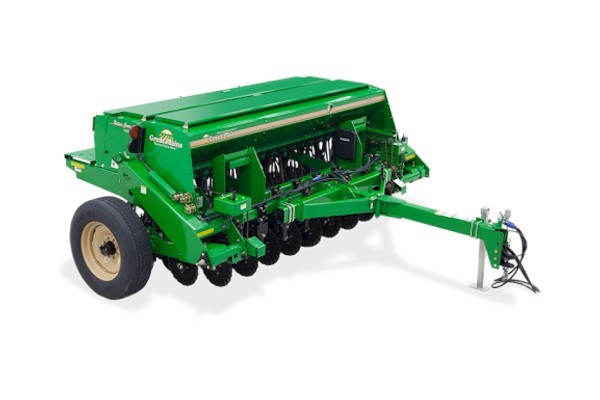

Great Plains 1206NT
Great Plains delivers a highly economical seeding solution in the versatile 1206NT Drill, which can simultaneously seed up to three different seeds at different rates.
With 06 Series openers, the 1206NT builds off the success of its predecessor, the 1205NT. The 1206NT comes standard with a main seed box. Its 4-speed gearbox and fluted feed meter gently and precisely meter a wide variety of seed. An optional native grass box can be added to meter the fluffiest native grass. Smaller seeds, like clovers, can be seeded by adding a small seeds box. This adds up to three boxes planting three seeds at three different rates.
End wheel design makes the 1206 extremely maneuverable and reliable. By keeping all ground-working components in line with the end wheels, openers are prevented from sideloading when working on rolling terrain and contours. Additional features that increase the convenience and productivity of the 1206 End Wheel are hydraulically-adjustable coulter depth and a mechanical clutch that disengages when the drill is raised.
Shopping Tools
1206NT Features & Benefits
06 SERIES OPENER
The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter that cuts residue and prepares a mini seedbed for the trailing double-disc opener.
4-SPEED GEARBOX
Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.
END WHEEL DRIVE
Large end wheels provide excellent ground drive to the seed meters. Lockout hubs save drive components from wear.
GREASE BANK
Lets you service all the coulter pivot components from two locations.
INTEGRATED WEIGHT BRACKETS
Allow you to easily add weight for better penetration in tough no-till conditions.
LEAD COULTER OPTIONS
Choose between a wide ¾" wavy blade, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily to perform minimum tillage.
MODULAR DESIGN ALLOWS UP TO THREE BOXES ON A UNIT
This allows three different seeds to be planted at separate rates and different depths at the same time. Optional boxes include native grass or fertilizer, and small seeds.
PRESS WHEEL OPTIONS
Choices include, from left, single 3"x13" double rib press wheels; single 3"x13" center rib press wheels; single 2"x13" smooth press wheels; 1"x12" double-V press wheels.
T-HANDLE DEPTH CONTROL
T-handles offer 18 different positions for accurate depth control.
OPTIONAL FERTILIZER BOX
Easy cleanout and six-point meter wheels accurately meter dry fertilizer. 12 cu. ft. capacity.
OPTIONAL SEED BOX AGITATOR
Eliminates bridging and provides consistent seed flow to the seed cups.
1206NT Specs & Compare
| MODEL INFO | 12' END WHEEL NO-TILL DRILLS |
| MODEL | 1206NT |
| TYPE | End Wheel Pull-Type |
| PRIMARY DESIGN | No-Till |
| ROW SPACINGS | 7.5" (19.1cm) |
| NUMBER OF OPENERS | 19 |
| TIRE SIZE | 297/75R 22.5 Rib Truck Tires |
| H.P. REQUIREMENTS (min) | 75+ |
| WEIGHT (approx. range) | 5,965 |
| DIMENSIONS | |
| WORKING WIDTH | 12' (3.66m) |
| WIDTH (transport) | 15' 7" (4.74m) |
| LENGTH (transport) | 13' 7" (4.14m) |
| CLEARANCE (transport) | 13.5" (34.3cm) |
| HEIGHT (transport) | 6' 7" |
| OPENER SERIES | 06 Series |
| COULTER | 5/8" Turbo, 5/16" Fluted, 3/4" Wavy |
| CAPACITIES | |
| MAIN BOX CAPACITY | 28.8 bu (1015L) |
| SMALL SEED BOX | 2.62 bu (92.3L) |
| NATIVE GRASS BOX | N/A |
| FERTILIZER | 12 cu ft (.34m³) |
