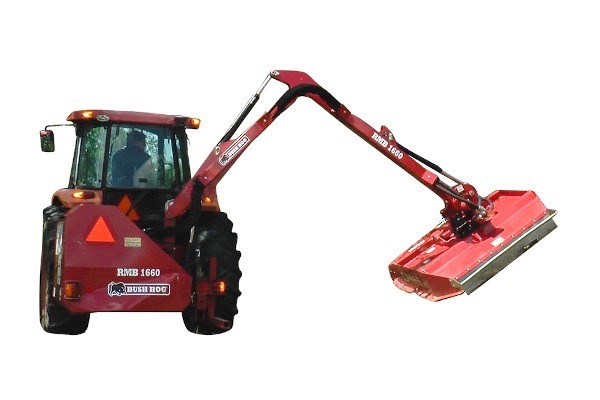

The ultimate in versatility, Bush Hog’s rugged, tractor-mounted boom mowers are designed to trim trees, brush or hedges and mow behind guardrails, over fences, down embankments and around ponds. With four models reaching 11 to 18-feet from the tractor centerline, there’s almost no limit to what you can accomplish. They’re easy to operate and built to provide years of dependable service.

NOTE: (RMB models to be used on tractors equipped with cabs only, and for rotary mower heads, protective screen material must be installed.)

  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the RMB1660-1

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the RMB1660-1

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on RMB1660-1

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

RMB1660-1 Features & Benefits

Construction Features

  • All RMB Boom Mowers are equipped with hydraulic or mechanical breakaways.
  • RMB models offered with optional accessories such as a lift float kit and skid kit on certain models.



Product Features

  • FLAIL HEAD
    Attachment for RMB series
    1-2″ Cutting Capacity
    39-47″ Cutting Width
  • ROTARY HEAD
    Attachment for RMB series
    4″ Cutting Capacity
    60″ Cutting Width

  • CUTTER BAR
    Attachment for RMB series
    1-1/4″ Cutting Capacity
    59″ Cutting Width
  • POWERTRIM PT5:
    3/4”Cutting Capacity
    59” Cutting Width

  • All RMB models offer self contained, fully independent hydraulic systems with twin pumps for optimum cutting performance.
    The PT5 is powered by the tractor’s hydraulic system requiring only 3.7 gal/min flow to operate the unit.
  • Maximum Horizontal Reach(A) from 11’5″ to 18’1″
    Maximum Vertical Reach(D) from 10’2″ to 22″4″

RMB1660-1 Specs & Compare

SPECIFICATIONS

BOOM MOWERSRMB1660-1
TRACTOR ENGINE HP / WEIGHT (MIN.)SEE HEAD SELECTION CHART BELOW; VARIES BASED ON HEAD CHOICE
TRACTOR PTO540
MACHINE WEIGHT W/FLAIL*2403-LBS.
HYDRAULIC SYSTEMTOTALLY INDEPENDENT (SELF-CONTAINED HYDRAULIC SYSTEM, PUMP POWERED BY TRACTOR PTO)
ATTACHMENT METHODCAT. I/II, 3 PT. MOUNT
CONTROLSCABLE CONTROLLED QUICK DETACH (QD)
MAX REACH, HORIZONTAL (A)16-FEET 5-INCHES
MAX REACH, HORIZONTAL (B)14-FEET 6-INCHES
MAX HEIGHT, HORIZONTAL (C)15-FEET 9-INCHES
MAX HEIGHT, VERTICAL (D)20-FEET 8-INCHES
MAX DEPTH, 45° (E)7-FEET 3-INCHES



HEAD SELECTION CHART

FLAIL HEADRMB1660-1
TRACTOR ENGINE HP / WEIGHT (MIN.)60 HP/6614-LBS.
ROTOR / KNIFE TYPESUPER CUT / F91 COMPETITION KNIVES OR MULTI-CUT / COMPETITION
TYPICAL APPLICATIONHEDGE CUTTING, GRASS
CUTTING CAPACITY1 1/2-INCH DIAMETER
CUTTING WIDTH47-INCHES



ROTARY HEADRMB1660-1
TRACTOR ENGINE HP/WEIGHT (MIN.)85 HP/7614-LBS.
TYPICAL APPLICATIONGRASS/BRUSH
CUTTING CAPACITY4-INCHES DIAMETER
CUTTING WIDTH60-INCHES
* FOR ROTARY HEAD, PROTECTIVE SCREEN MATERIAL MUST BE INSTALLED.



CUTTER BARRMB1660-1
TRACTOR ENGINE HP/WEIGHT (MIN.)60 HP/6614-LBS.
CUTTER TYPESICKLE BAR
CUTTING CAPACITY DIAMETER1 1/4-INCH DIAMETER
CUTTING WIDTH59-INCH
