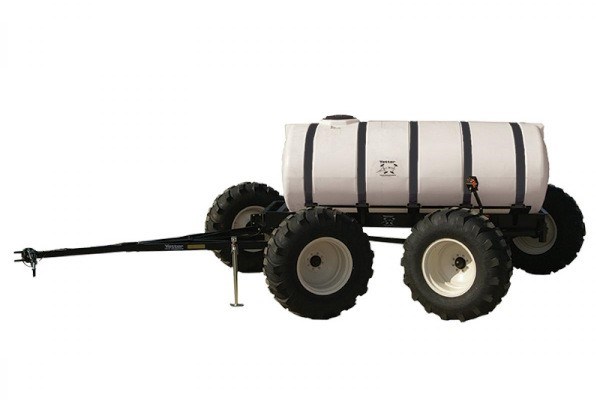

Features
- 120" tread width offers outstanding load stability while allowing the axles to straddle the rows (other row spacing available)
- Low-profile tank design lowers center of gravity
- Front and rear axles pivot on greasable fifth wheels
- Front axle pivots up to 10° up or down from the center line to relieve stress using dual-pivot design
- Spring-loaded and self-engaging Sure Lock allows for quick change from four-wheel to two-wheel steering
- 18.4-26/12-ply industrial tires provide needed clearance for side-dress operations
- Standard hazard warning lights and SMV emblem
- Dual-tank model carries two products for split application or can be plumbed to increase single product capacity
- Available with black carts and white tanks or with green carts and yellow tanks
Specs
- Single-tank capacity: 1,600 gallon
- Dual-tank capacity: 1,600 + 400 gallon
- Maximum load: 30,000 lbs. (including cart)
- Axle: Standard for 30" rows; spacer kits available for 22", 36", and 38" rows
- Tires: Titan® 18.4-26/10-ply industrial lug with 26" ground clearance
- Spindles: 3" bolt-on (8)
- Weight, 2000 All Steer with tires: 4,300 lbs.
- Weight, 1600 All Steer with tires: 4,100 lbs.
- Width: 138"
- Height: 90"
- Length, front tire to back tire: 177"
- Length, tongue retracted: 289"
| AVAILABLE CONFIGURATIONS | 2,000 Gallon Dual Tank (1,600 gallon + 400 gallon) | 1,600 Gallon Single Tank | |
| Tank + cart(s) | X | X | |
| Cart w/ saddles | X | X | |
| Cart less saddles | X | ||
| Green cart/yellow tank | X | X | |
| Black cart/white tank | X | X | |
| Split application capable | X |
