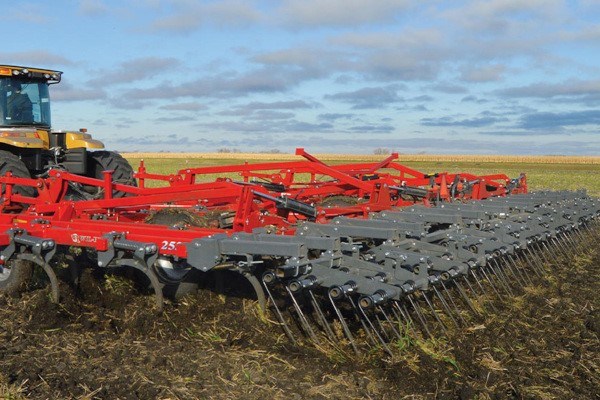

Wil-Rich Wil-Rich 2500 Series

Excellent agronomic performance
A post-harvest tillage pass is essential for creating an improved seedbed in the spring, laying the groundwork for operational success throughout the year. Ensure your crop has the best opportunity to thrive while simultaneously minimising risks.

Built for tough tillage: Versatility and strength combined
The Wil-Rich 2500 Series is available in 12 or 15-in shank spacing and with trip pressure options of 650 lbs or 1,000 lbs, giving you the flexibility to adapt to your soil conditions. Select sizes are also available with either a level lift or floating hitch, providing the ability for it to fit your operation’s needs. Its reinforced steel frame ensures durability in even the toughest environments, while the compact transport design allows for easy maneuvering between fields.

Level lift hitch for level fields
Intended for use in smooth, even ground conditions, the level lift hitch keeps the implement level during operation, as well as transport. It helps maintain consistent depth from the front to the rear of the unit.

The level lift hitch is available on all Wil-Rich 2500 models.

Floating hitch for ground following
The floating hitch pivots between the tractor and the main frame, allowing the chisel plow to closely follow the ground contours. The front caster gauge wheels are mechanically synchronized with the rear axle, enabling the unit to maintain a consistent working depth from front to rear.

The floating hitch is available on Wil-Rich 2500 models 31 ft and larger.

Deep frame with excellent trash flow for minimal plugging
The Wil-Rich 2500 Series has four ranks of shanks with a deep frame design. This allows for generous spacing between shanks so that soil and heavy residue can flow freely through the unit without plugging. To accomodate different field conditions, the chisel plow is available with two shank spacing options of either 12 or 15-in, which can be specified beforehand.

Shanks built for heavy soils
Heavy-duty trip assemblies on the Wil-Rich 2500 Series help penetrate and maintain depth in tough, heavy soils.

Compression spring trip assembly
The 1,000 lbs compression spring trip assemblies use Wil-Rich’s legendary on-edge shanks with wider, zero maintenance pivots that are designed for the life of the machine, allowing it to operate effectively in heavy, compacted soils. With tine dimensions of 1.25 x 2 x 30 inches, they are designed with a 50-degree approach angle to guarantee deep penetration and thorough soil mixing.

Extension spring trip assembly
The 650 lbs extension spring trip assemblies are engineered for optimal penetration and effective soil engagement. The shank dimensions measure 2 x 1.25 x 32 inches, featuring a 54-degree approach angle for reliable performance.
