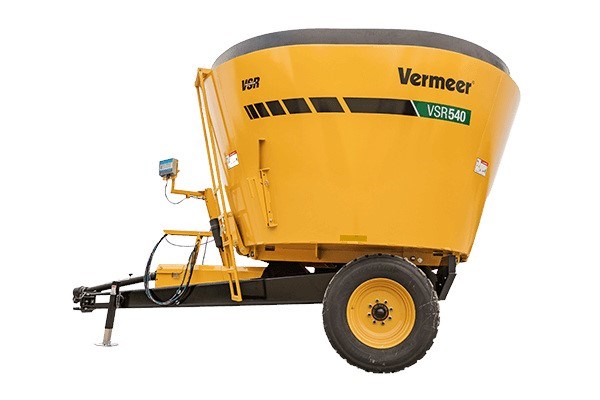

Vermeer VSR540 Single-Screw Vertical Mixer
- Maximize the value of your high-roughage ration
- Ample processing power with virtually no spillage
- Low-maintenance, high-performing design for full-time or seasonal use
Shopping Tools
VSR540 Single-Screw Vertical Mixer Features & Benefits
Efficient mixing and cleanout
Empty the mixer quickly and efficiently at the end of a load with optional high-screw rpm. A 48-rpm screw, along with two points of contact with the tub floor helps clean out the tub to make sure the ration gets in the bunk or on the curb.
Cleanout is quick and efficient with two points of contact on the tub floor.
Processing ability
Achieve a thorough and consistently mixed ration with the VSR540 single-screw vertical mixer. Built to handle high-roughage rations, this mixer can process full bales or preprocessed material in a timely and flexible manner.
Less feed on the ground means less feed wasted. An optimized tub and screw design along with a bale containment kit minimize spillage during mixing or processing.
Help keep more roughage in the tub of the mixer and less on the ground with the standard bale containment kit. A chain hay ring around the rim of the tub helps to minimize spillage.
Built to last
Extend machine life with a heavy-duty planetary.
Focus on feeding — not getting your mixer stuck in adverse ground conditions. The tires on the VSR540 single-screw vertical mixer provide maximized flotation to help prevent ground damage.
Extend machine life and minimize routine maintenance with durable components such as a heavy-duty planetary and 1/2-in (13-mm) AR200 screw flighting.
VSR540 Single-Screw Vertical Mixer Specs & Compare
| DIMENSIONS AND WEIGHTS | |
| Loading height - standard | 120 in |
| Machine weight - standard | 8920 lbs |
| Maximum net load | 11000 lbs |
| Total length | 201 in |
| Transport width - 50-in folding conveyor extension | 132 in |
| Working width - 50-in folding conveyor extension | 158 in |
| Tires (retread) | Standard 445/50R-22.5 |
| TUB AND SCREWS | |
| Capacity | 540 cu ft |
| Number of screws | 1 |
| Number of knives per screw | 7 |
| Tub wall thickness | 1/4 in (6.4 mm) |
| Tub wall material | Regular structural steel |
| Floor thickness | 5/8 in (15.9 mm) |
| Screw flighting thickness | 1/2 in (12.7 mm) |
| Screw flighting material | AR200 |
| DISCHARGE SYSTEM | |
| Discharge style | Side conveyor |
| Discharge Direction | Right |
| Folding conveyor extension length | 50 in (130 cm) |
| TRACTOR REQUIREMENTS | |
| Minimum PTO horsepower | 130 hp (97 kW) |
| Recommended PTO horsepower | 150 hp |
| DRIVE SYSTEM | |
| Driveline | Standard: 1000 rpm, CV; Optional: 540 rpm, CV |
| Torque Protection | Shear bolt |
| Screw rpm | 1000-rpm configuration: 48 (1 speed) or 48/32 (2 speed); 540-rpm configuration: 40 (1 speed) or 40/27 (2 speed) |
| SCALE SYSTEM | |
| Scale display | Digi-Star EZ2500 |
| Number of weigh bars | 3 |
