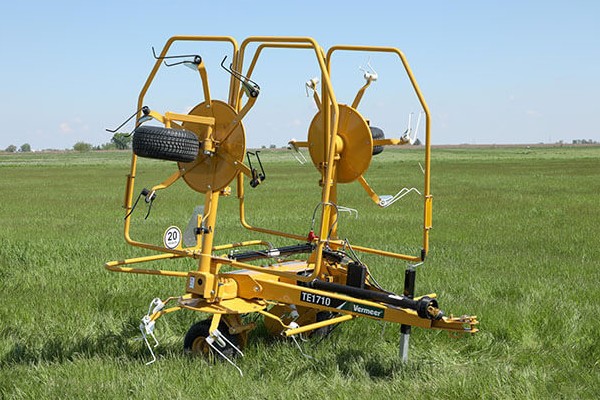

Vermeer TE1710 Tedder
- Reduce nutritional losses in your hay by shortening dry-down time
- Convenient maintenance and durability
- Ground contouring and flotation in the field and a smooth ride on the road
Shopping Tools
TE1710 Tedder Features & Benefits
Heavy-duty design
Stability and durability come from a heavy-duty, solid-frame construction.
Help protect your machine especially in heavy, wet crops with the radial pin clutch protecting the drive components and center gearbox.
The reinforced tongue offers longevity to help 10-series tedders perform year-after-year.
Help protect forage quality
Hook tines staggered in length are designed to help wet crop on bottom be gently placed on top for a quick, consistent dry down.
Get your hay off the field sooner by achieving a quicker dry down.
Simple and efficient operation
Convenient adjustments to basket angle and height allow operators to match the field and crop conditions.
Large, durable tires supported by strong spindles allow for ground contouring and flotation with quiet and convenient transport from field to field.
TE1710 Tedder Specs & Compare
| DIMENSIONS AND WEIGHTS | |
| Tedding width | 17 ft |
| Transport Height | 8.5 ft |
| Transport Width | 9 ft |
| Transport Length | 7.2 ft |
| Total Weight | 1480 lbs |
| Tongue Weight | 240 lbs |
| Tire size | 18.5 8.5-8 |
| Basket tilt and adjustment | Hydraulic, toolless adjustment |
| Number of Baskets | 4 |
| Tine Arms per Basket | 6 |
| Type of Tine | Hook tine |
| Torque protection driveline | Radial pin clutch |
| TRACTOR REQUIREMENTS | |
| PTO Horsepower Requirements | 34 hp |
| Hydraulic requirements | 1 double-acting |
| Hydraulic pressure minimum | 2100 psi |
| Hitch | Drawbar clevis connection |
| Drive PTO | 540 rpm |
| FEATURES | |
| SMV Sign | Standard |
