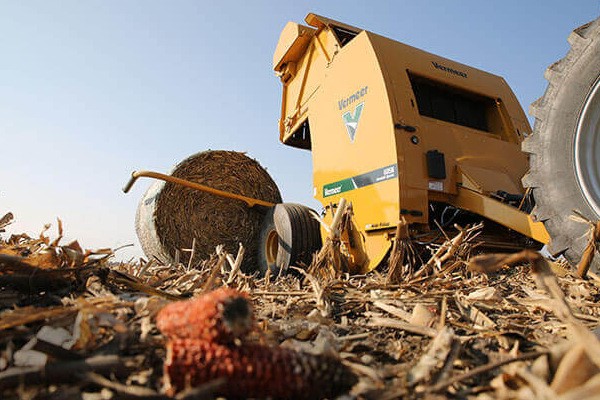

Vermeer 605N Cornstalk Special Baler
- Premium haymaking, simple operation
- Durable components for increased longevity
- For operators who need a tough baler to handle a tough job
Shopping Tools
605N Cornstalk Special Baler Features & Benefits
More baling, less maintenance
The optional Auto Lube greasing system automatically lubricates critical bearings at user-defined intervals, optimizing performance with high-pressure polyurea grease.
The dual-stage bale chamber boosts starting speeds to help ensure tight, smooth bale starts by reducing the chamber size by 50%, allowing hay to turn quicker.
Real-time insights
The ISOBUS-compatible E-Link Pro display offers quick access to bale weight and moisture readings, tracks data for 20 customers and 10 fields each, and provides feedback on the Auto Lube greasing system and pickup clutch control.
Durable components for increased longevity
The durable pickup features an optional clutch that stops at the desired bale size to prevent overfilling and help protect components.
Tired of replacing pickup teeth? No problem. Rubber-mounted pickup teeth are more durable and last longer than standard pickup teeth.
Seals help reduce dirt ingress, minimizing wear, while toolless gauge wheels make height adjustments easy.
605N Cornstalk Special Baler Specs & Compare
| Bale Size | |
| Bale Diameter | 36 in - 72 in (91.4 cm - 182.9 cm) |
| Bale Width | 61 in |
| Maximum bale weight | 2400 lbs |
| Dimensions and Weights | |
| Length - Standard | 195 in |
| Height | 117 in |
| Width with standard tires | 129 in |
| Tires | 21.5L-16.1 flotation tire |
| Weigth fully optioned | 8600 lbs |
| BALE FORMING CHAMBER | |
| Drive Roller Size | 5.5 in (14 cm) |
| Drum Roller Size | 12 in |
| Idler Roller Size | 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm) |
| Start Roller Size | 4.5 in |
| Belt Type | Premium mini rough top |
| Number of Belts | 8 |
| Length of Belt - Long | 540 " (1371.6 cm)in |
| Length of Belt - Short | 533 in |
| Type of Lace | Alligator Rivet |
| Silage Kit | Optional |
| Drive System | |
| Driveline | 1000 rpm, extended lube, cut-out clutch |
| Torque protection pickup | Friction with slip-sensing |
| Roller Chain | Single 50, 60, 80 |
| Bearing and Sprocket Configuration | Hex shaft and bearings |
| Tractor Requirements | |
| Horsepower Required | 150 hp |
| PICKUP | |
| Pick up type | Cammed wide |
| Width tooth to tooth | 77 in |
| Width on outside flair | 90 in |
| Tooth Bars | 10 |
| Number of teeth | (65) double rubber - mounted |
| Teeth spacing | 3-1/16 in (7.8 cm) |
| Stripper Bands | Steel |
| Flotation | Gauge wheels - 7.1 - 16 HD Semi-pneumatic with spring assist |
| Pickup Lift | Hydraulic |
| CONTROL SYSTEM | |
| Control system type | E-Link Pro |
| Display | 7 in (17.8 cm) color touch screen |
| Field Statistics | 20 customers with 10 fields each |
| Field statistics download | USB |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bales per hour | Standard |
| DENSITY | |
| Bale density adjustments | Standard |
| Density readings | Physical gauge |
| Cylinder size | 3 in (7.6 cm) |
| BALE TIE SYSTEM | |
| Netwrap system | Standard |
| Net tension control | via mechanical adjustment |
| Extra roll storage | Standard |
| FEATURES | |
| Bale rampStandard hydraulic; Optional Inline® ramp | |
| Auto Lube greasing system | Standard |
| Automatic chain lube system | Optional |
| Right-hand door | Standard |
| LED maintenance lights | Standard |
| Fire extinguisher, safety chain | Optional |
