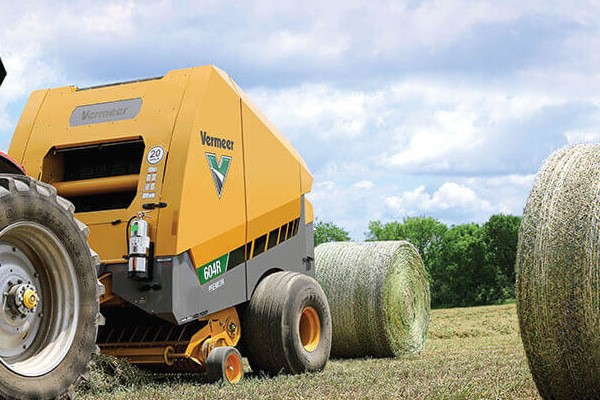

Vermeer 604R Premium Baler
- Strong, fast and smart features
- Premium haymaking, simple operation
- Make bales you can be proud of
Shopping Tools
604R Premium Baler Features & Benefits
Smart features help make baling simple
Enjoy smarter, more efficient hay production with the Auto-eject system that ties bales and operates the tailgate automatically, along with a net lift system that raises the netwrap roll for the operator.
Let the 604R Premium do the heavy-lifting for you. The net lift system raises the netwrap roll into the tailgate from the ground or from the back of a truck.
Good-looking bales come standard
The netwrap system on all 604 R-series balers lets operators control net tension for optimal coverage.
Bale density can be controlled in cab from the Atlas Pro™ control system monitor allowing operators to decide how dense to make the bale.
More baling, less maintenance
The camless pickup maximizes productivity while reducing maintenance with 30 fewer wear parts compared to a cammed pickup.
Tired of replacing pickup teeth? No problem. Rubber-mounted pickup teeth are more durable and last longer than standard pickup teeth.
Peace of mind
Operators can rest assured with a 3-year pickup coverage on internal components including parts* and labor. *Does not include teeth or hardware for teeth.
604R Premium Baler Specs & Compare
| BALE SIZE | |
| Bale diameter | 36 in-72 in (91.4 cm-182.9 cm) |
| Bale width | 47 in |
| Bale weight* | 2400 lbs |
| DIMENSIONS AND WEIGHTS | |
| Length standard | 184 in |
| Length with net | 184 in |
| Length with ramp | 206 in |
| Height | 121 in |
| Width with standard tires | 115 in |
| Tires | 21.5L - 16.1 flotation tires |
| Weight fully optioned | 8020 lbs |
| BALE FORMING CHAMBER | |
| Drive roller size | 5.5 in (14 cm) |
| Idler roller size | 3.5 in (8.9 cm), 4.8 in (12.1 cm) |
| Start roller size | 5.3 in |
| Belt type | Premium mini rough top |
| Number of belts | 6 |
| Width of Belt | 6.8 in |
| Length of belt (long) | 563.5 in |
| Length of belt (short) | 557 in |
| Type of lace | Alligator rivet |
| Silage kit | Standard |
| DRIVE SYSTEM | |
| Driveline | Standard: 540 rpm, standard lube, Automatic clutch; Optional: 1000 rpm, extended lube, automatic clutch |
| Roller chains | Single 80 and 100 |
| Torque protection pickup | Radial pin clutch |
| Bearing and sprocket configuration | Hex drive shafts and bearings |
| TRACTOR REQUIREMENTS | |
| PTO horsepower required | 85 hp |
| PTO horsepower recommended | 105 hp |
| PICKUP | |
| Pickup Type | Camless wide |
| Width tooth to tooth | 70.5 in |
| Width on outside flair | 73.8 inc |
| Tooth Bars | 5 |
| Number of Teeth | (70) double rubber-mounted |
| Teeth spacing | 2.83 in (7.2 cm) |
| Stipper bands | Poly |
| Floatation | Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydarulic |
| 3-year pickup warranty | Standard |
| CONTROL SYSTEM | |
| Control system type | Atlas Pro™ control system |
| Display | 7 in (17.8 cm) color touch screen |
| Field statistics | 50 fields and names |
| Field statistics download | USB |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bale per hour | Standard |
| Auto eject | Standard |
| DENSITY | |
| Bale density adjustments | Standard through control system monitor |
| Density Readings | Digital gauge |
| Cylinder size | 3 in (7.6 cm) for a 30% density increase |
| BALE TIE SYSTEM | |
| Twine system | Optional |
| Netwrap system | Standard |
| Net gauge via control system | Standard |
| Net tension control | via control system |
| Netlift system | Standard |
| Extra roll storage | Standard |
| FEATURES | |
| Bale ramp | Hydraulic |
| Auto Lube greasing system | Standard |
| Right-hand door | Standard |
| LED maintenance lights | Standard |
| Fire extinguisher, safety chain | Optional |
