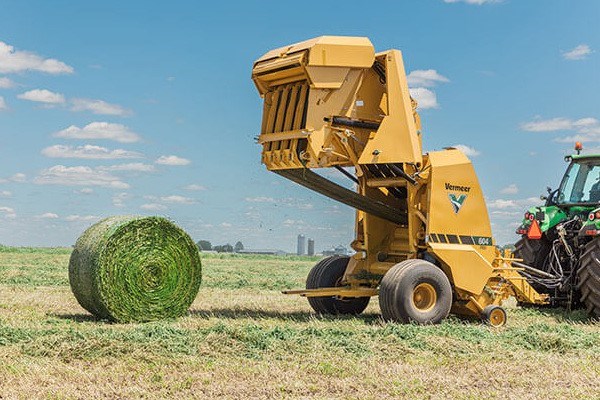

Vermeer 604 Pro G4 Baler
- Stay in the field when it matters most
- Bale nutrient-dense silage or dry hay
- Engineered with versatility, durability and ease of use in mind
Shopping Tools
604 Pro G4 Baler Features & Benefits
More baling, less maintenance
The drop floor flexes during baling to help crop flow into the chamber with ease. If a plug does occur, operators can clear the plug from the cab so they can get back to baling.
Spend more time baling hay and less time clearing out your pickup. The unique geometry of the patent-pending poly riser stripper bands promote crop stripping and minimize pickup wrapping.
Built with few moving parts, the camless wide pickup gets the job done and helps minimize parts cost when it’s time for routine maintenance.
Better bales, better nutrition for your herd
Load and route netwrap with ease at the back of the baler with a rear-load netwrap system. Spread net edge-to-edge and adjust netwrap tension from the cab on a scale of 0 to 100 to maximize spread over the edges, depending on the type of netwrap.
Choose your preferred cut length for optimizing bale density, silage quality, feed mixing time and digestibility with a 17-knife chopping system.
Durable components for maximized longevity
Tired of replacing pickup teeth? No problem. Rubber-mounted pickup teeth are more durable and last longer than standard pickup teeth.
Baling tough crops? No problem. A 540 rpm or 1,000 rpm PTO tie into a split gearbox, running the pickup on one side and the chamber on the other to help spread the load to both sides of the baler.
Peace of mind
The drop floor flexes during baling to help crop flow into the chamber with ease. If a plug does occur, operators can clear the plug from the cab so they can get back to baling.
Operators can rest assured with a 3-year pickup coverage on internal components including parts* and labor. *Does not include teeth or hardware for teeth.
Smart features make baling simple
Control the outcome of the bale from the convenience of the cab with the Atlas Pro™ control system. Monitor real-time bale and crop statistics and adjust based on moisture, crop and customer preference for up to 50 fields. Plus, control features like the knife banks, drop floor and net tension, all without ever leaving the seat.
604 Pro G4 Baler Specs & Compare
| Bale Size | |
| Bale Diameter | 36 in - 72 in (91 cm - 180 cm) |
| Bale Width | 48 in |
| Maximum bale weight | 2400 lbs |
| Dimensions and Weights | |
| Length standard | 213 in |
| Length with net | 213 in |
| Length with ramp | 213 in |
| Height | 120 in |
| Width with standard tires | 112 in |
| Tires | 21.5L-16.1 flotation tire |
| Weight fully optioned | 10500 lbs |
| Bale Forming Chamber | |
| Drive Roller Size | 7.1-in (18-cm) rubber and (1) 6.6-in (17-cm) steel |
| Drum roller size | 9.5 in |
| Idler roller size | 9.5 in, 6.6 in, 4.5 in (24 cm, 17 cm, 11 cm) |
| Start Roller Size | 8 in |
| Belt Type | Endless belts |
| Number of Belts | 4 |
| Width of Belt | 11.2 in |
| Length of belt (long) | 472 in |
| Type of Lace | No laces |
| Drive System | |
| Driveline | 540 rpm, standard lube, cut-out clutch |
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 60, 80 100 and double 80 |
| Bearing and Sprocket Configuration | Round and hex drive shafts, greaseable roller bearings |
| Tractor Requirements | |
| PTO horsepower minimum | 90 hp |
| PTO horsepower recommended | 120 hp |
| Pickup | |
| Pickup type | Camless wide |
| Width tooth to tooth | 73 in |
| Width on outside flair | 78 in |
| Tooth Bars | 5 |
| Number of Teeth | (75) double rubber-mounted |
| Teeth spacing | 2.5 in (6.4 cm) |
| Stripper bands | Poly |
| Flotation | Gauge wheels7.10-16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydraulic |
| 3-year pickup warranty | Standard |
| Control system | |
| Control system type | Atlas Pro™ control system |
| Display | 7-in (18-cm) color touch screen |
| Field Statistics | 50 fields with names |
| Field statistics download | USB |
| Bale shape indicators | Standard |
| Bales per hour | Standard |
| Density | |
| Bale density adjustments | Standard through control system monitor |
| Density readings | Digital gauge |
| Bale tie system | |
| Netwrap system | Standard |
| Net gauge via control system | Standard |
| Net tension control | via control system |
| Extra roll storage | Standard |
| Features | |
| Bale ramp | Spring-loaded |
| Grease bank | Standard |
| Automatic chain lube system | Optional |
| Right-hand door | Standard |
| LED maintenance lights | Optional |
| Fire extinguisher, safety chain | Optional |
