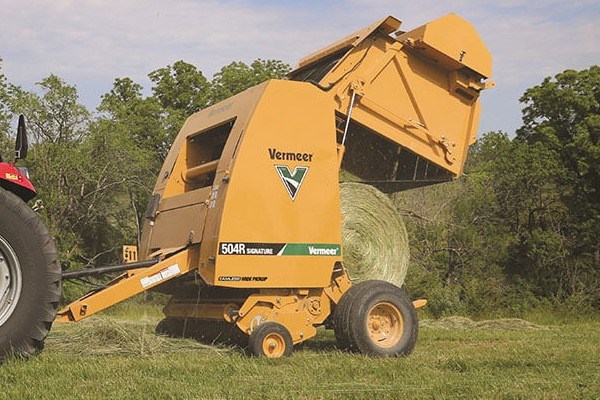

Vermeer 504R Signature Baler
- Robust performance with simplicity in mind
- Built with heavy-duty components
- Convenient routine maintenance
Shopping Tools
504R Signature Baler Features & Benefits
Peace of mind
Operators can rest assured with a 3-year pickup coverage on internal components including parts* and labor. *Does not include teeth or hardware for teeth.
Confidence in the cab
Real-time moisture sensors come standard on the 504R Signature baler and provide moisture readings via the Atlas Pro™ control system, giving operators access to real-time moisture information in the tractor cab.
Control and adjust bale shape, net tension and density from the comfort of your cab with the Atlas Pro control system.
Convenient operation and maintenance
Built with few moving parts, the 60-in (150-cm) 4-bar camless wide pickup gets the job done and helps minimize parts cost when it’s time for routine maintenance.
Square-shouldered, dense bales start at the rotor that creates positive bale starts while the auger and feeding system forces crop into the chamber for bale formation.
504R Signature Baler Specs & Compare
| BALE SIZE | |
| Bale diameter | 36 in-60 in (91.4 cm-152.4 cm) |
| Bale width | 47 in |
| Bale weight* | 2000 lb (907.2 kg) |
| DIMENSIONS AND WEIGHTS | |
| Length standard | 156 in |
| Length with net | 173 in |
| Length with ramp | 169 in |
| Height | 107 in |
| Width standard | 100 in |
| Tires | Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire |
| Weight fully optioned | 5400 lbs |
| BALE FORMING CHAMBER | |
| Type of chamber | Variable |
| Idler roller size | 3.5 in (8.9 cm) |
| Start roller size | 4.5 in (11.4 cm) |
| Belt Type | Standard mini rough top |
| Width of belt | 6.8 in |
| Number of belts | 6 |
| Length of belt (long) | 465.5 in |
| Length of belt (short) | 455.5 in |
| Type of lace | Alligator rivet |
| Silage kit | Optional |
| DRIVE SYSTEM | |
| Driveline | 540 rpm, standard lube, friction clutch |
| Torque protection pickup | Radial pin clutch |
| Roller chain | Single 60 and 80 |
| Bearing and sprocket configuration | Round drive shafts and bearings |
| TRACTOR REQUIREMENTS | |
| PTO horsepower required | 45 hp |
| PTO horsepower recommended | 55 hp |
| PICKUP | |
| Pickup type | Camless wide |
| Width tooth to tooth | 60 in |
| Tooth Bars | 5 |
| Number of Teeth | (60) double steel coil |
| Teeth spacing | 2.83 in (7.2 cm) |
| Stripper bands | Steel |
| Flotation | Gauge wheels 4.8-16 HD semi-pneumatic with spring assist |
| Pickup Lift | Manual standard, hydraulic optional |
| 3-year pickup warranty | Standard |
| CONTROL SYSTEM | |
| Control system type | Atlas™ control system |
| Display | 4.3 in (10.9 cm) color touch screen |
| Field Statistics | 10 fields |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bales per hour | Standard |
| DENSITY | |
| Bale density adjustments | Standard manual through hydraulic relief valve |
| Density readings | Physical gauge |
| BALE TIE SYSTEM | |
| Twine system | Optional |
| Netwrap system | Optional |
| Net tension control | via mechanical adjustment |
| Extra roll storage | Standard |
| FEATURES | |
| Bale ramp | Optional spring-loaded |
| Right-hand door | Standard |
| Fire extinguisher, safety chain | Optional |
