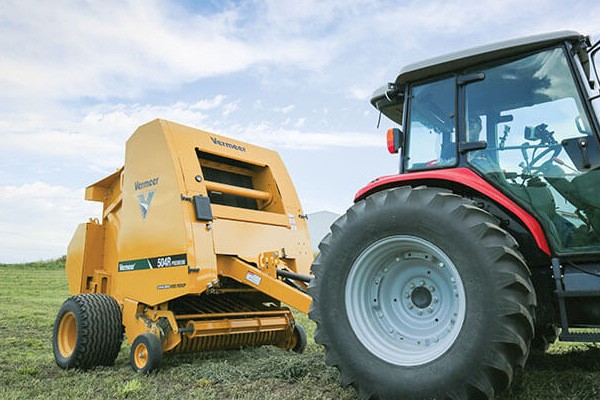

Vermeer 504R Premium Baler
- Fully-loaded with a standard silage kit for high output of high-moisture crops
- Convenient maintenance and operation come standard
- Good-looking bales in tough conditions
Shopping Tools
504R Premium Baler Features & Benefits
High-quality hay and silage
Achieve optimal results with high-moisture hay using the 504R Premium, featuring a standard silage kit specifically designed for handling baleage.
Minimized routine maintenance
Built with few moving parts, the 60-in (150-cm) camless wide pickup gets the job done and helps minimize parts cost when it’s time for routine maintenance.
Heavy-duty components
Maximize productivity and output with the baler’s heavy-duty components including premium belts, optional endless belts and optional float tires.
Confidence in the cab
Control and adjust bale shape, net tension and density from the comfort of your cab with the Atlas Pro control system.
Peace of mind
Operators can rest assured with a 3-year pickup coverage on internal components including parts* and labor. *Does not include teeth or hardware for teeth
504R Premium Baler Specs & Compare
| BALE SIZE | |
| Bale diameter | 36 in-60 in (91.4 cm-152.4 cm) |
| Bale width | 47 in |
| Bale weight* | 2000 lbs |
| DIMENSIONS AND WEIGHTS | |
| Length standard | 156 in |
| Length with net | 173 in |
| Length with ramp | 169 in |
| Height | 111 in |
| Width with standard tires | 100 in |
| Tires | Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire |
| Weight fully optiones | 5460 lbs |
| BALE FORMING CHAMBER | |
| Drive roller size | 4.78 in (12.1 cm) |
| Idler roller size | 3.5 in (8.9 cm) |
| Start roller size | 4.5 in |
| Number of belts | 6 |
| Width of belt | 6.8 in |
| Length of belt (long) | 465.5 in |
| Length of belt (short) | 455.5 in |
| Type of lace | Alligator rivet or no laces (endless belts) |
| Silage Kit | Standard |
| DRIVE SYSTEM | |
| Driveline | 540 rpm, extended lube, friction clutch |
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 60 and 80 |
| Bearing and sprocket configuration | Round drive shafts and bearings |
| TRACTOR REQUIREMENTS | |
| PTO horsepower required | 55 hp |
| PTO horsepower recommended | 65 hp |
| PICKUP | |
| Pickup type | Camless wide |
| Width tooth to tooth | 60 in |
| Tooth Bars | 5 |
| Number of Teeth | (60) double steel coil |
| Teeth spacing | 2.83 in (7.2 cm) |
| Stripper bands | Steel |
| Flotation | Gauge wheels 4.8-16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydraulic |
| 3-year pickup warranty | Standard |
| CONTROL SYSTEM | |
| Control system type | Atlas™ control system |
| Display | 4.3 in (10.9 cm) color touch screen |
| Field Statistics | 10 fields |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bales per hour | Standard |
| DENSITY | |
| Bale density adjustments | Standard manual through hydraulic relief valve |
| Density readings | Physical gauge |
| BALE TIE SYSTEM | |
| Twine system | Optional |
| Netwrap system | Standard |
| Net tension control | via mechanical adjustment |
| Extra roll storage | Standard |
| FEATURES | |
| Bale ramp | Spring-loaded |
| Auto Lube greasing system | Optional |
| Grease bank | Standard |
| Right-hand door | Standard |
| LED maintenance lights | Optional |
| Fire extinguisher, safety chain | Optional |
