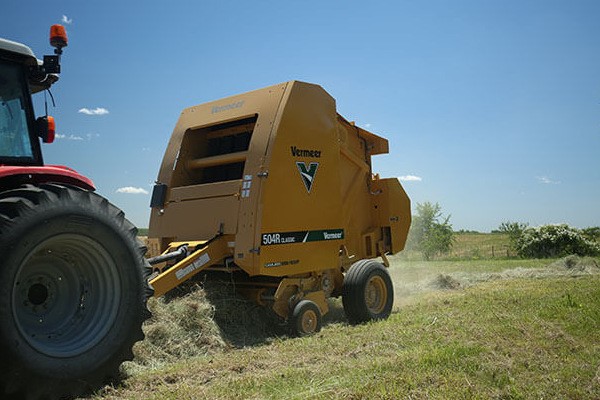

Vermeer 504R Classic Baler
- Robust performance with simplicity in mind
- Built with heavy-duty components
- Convenient routine maintenance
Shopping Tools
504R Classic Baler Features & Benefits
Low horsepower requirements
A low recommended PTO of 50 hp (40 kW) provides options for various tractors.
Confidence in the field
The Atlas™ control system delivers robust performance with simplicity in an intuitive package. Track field statistics, bales per hour and average bale size on a 4.3-in (11-cm) color touch-screen display.
Convenient operation and maintenance
Built with few moving parts, the 60-in (150-cm) 4-bar camless wide pickup gets the job done and helps minimize parts cost when it’s time for routine maintenance.
An optional netwrap system makes netwrap efficient to feed and operate.
Heavy-duty components
Durable chains and heavy-duty components on the inside of the baler, including strong driveshafts, make it built to last.
Peace of mind
Operators can rest assured with a 3-year pickup coverage on internal components including parts* and labor on the 504R Classic baler. *Does not include teeth or hardware for teeth.
504R Classic Baler Specs & Compare
| BALE SIZE | |
| Bale Diameter | 36 in - 60 in (91.4 cm - 152.4 cm) |
| Bale Width | 47 in |
| Maximum bale weight | 1000 lbs |
| DIMENSIONS AND WEIGHTS | |
| Length standard | 156 in |
| Length with net | 173 in |
| Length with ramp | 169 in |
| Height | 107 in |
| Width with standard tires | 100 in |
| Tires | Standard - 11L-15; Optional - 31 x 13.5-5 |
| Weight fully optioned | 5260 lbs |
| BALE FORMING CHAMBER | |
| Drive Roller Size | 4.78 in (12.1 cm) |
| Idler roller size | 3.5 in (8.9 cm) |
| Start Roller Size | 4.5 in |
| Belt Type | Standard mini rough top |
| Number of Belts | 5 |
| Width of Belt | 6.8 in |
| Length of belt (long) | 465.5 in |
| Length of belt (short) | 455.5 in |
| Type of Lace | Alligator rivet |
| DRIVE SYSTEM | |
| Driveline | 540 rpm, standard lube, radial pin clutch |
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 60 |
| Bearing and Sprocket Configuration | Round drive shafts and bearings |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 40 hp |
| PTO horsepower recommended | 50 hp |
| PICKUP | |
| Pickup type | Camless wide |
| Width tooth to tooth | 60 in |
| Tooth Bars | 4 |
| Number of Teeth | (48) double steel coil |
| Teeth spacing | 2.83 in (7.2 cm) |
| Stripper bands | Steel |
| Flotation | Optional gauge wheels 4.8-16 HD semi-pneumatic with spring assist |
| Pickup Lift | Manual standard, hydraulic optional |
| 3-year pickup warranty | Standard |
| CONTROL SYSTEM | |
| Control system type | Atlas™ control system |
| Display | 4.3 in (10.9 cm) color touch screen |
| Field Statistics | 10 fields |
| Bale shape indicators | Optional |
| Moisture | Optional - up to 27% |
| Bales per hour | Standard |
| DENSITY | |
| Bale density adjustments | Standard manual through hydraulic relief valve |
| Density readings | Optional physical gauge |
| BALE TIE SYSTEM | |
| Twine system | Optional |
| Netwrap system | Optional |
| Net tension control | via mechanical adjustment |
| Extra roll storage | Standard |
| FEATURES | |
| Bale ramp | Optional spring-loaded |
| Fire extinguisher, safety chain | Optional |
