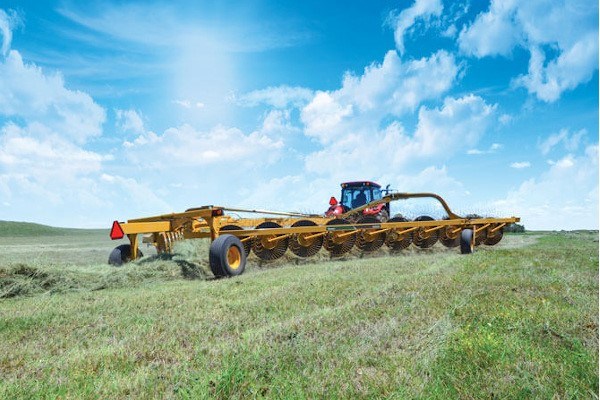

Vermeer VR2040 High-Capacity Wheel Rake
- Help cover more acres in less time – with minimal maintenance
- Harness the power and innovation of a high-capacity wheel rake
- Maximum efficiency and raking power
Shopping Tools
VR2040 High-Capacity Wheel Rake Features & Benefits
Efficient raking
Adjusting the rake wheel pressure is efficient with a lift/suspension cylinder on each wheel and the nitrogen-charged accumulator.
Minimize weight changes through wheel float range and minimize wear and tear on rake wheel teeth and the amount of dirt and rocks in operator’s hay.
Simple operation
Operators can engage and disengage the transport lock without leaving the tractor with automatic field transport locks.
When in raking position, the rear wheels are positioned close to the tractor — resulting in ease of maneuverability for such a large machine.
Heavy-duty design
Maximized vertical travel capabilities are possible from the frame design that allows the toolbar to flex 40 in (101.6 cm) down or 66 in (167.6 cm) up.
One-piece rake arms and hydraulic suspension on each rake wheel provide flexibility with less maintenance than similar-sized rakes.
Protect your hay quality
Consistent dry down – even in the center swath – can be achieved with the optional center splitter’s dual-angled, ground driven rake wheels. This feature splits the crop to allow for more air flow in the windrow.
VR2040 High-Capacity Wheel Rake Specs & Compare
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 25 ft |
| Raking width maximum | 40 ft |
| Windrow width minimum | 36 in |
| Windrow width maximum | 72 in |
| Transport Width | 12 ft |
| Transport Length | 38 ft |
| Transport Height | 6.3 ft |
| Total Weight | 6780 lbs |
| Tongue Weight | 1840 lbs |
| Transport tire size | 14L x 16.1 |
| Flotation | Hydraulic |
| Drive | Hydraulic |
| RAKING COMPONENTS | |
| Number of Rake Wheels | 20 |
| Rake wheel diameter | 55 in |
| Teeth per wheel | 40 |
| Tooth diameter | .3 in |
| Rake wheel wind discs | Optional |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 60 hp |
| Hydraulic Type | 3 double-acting |
| Hydraulic Pressure | 1800 psi |
| Hydraulic flow rate | 5 gpm |
| FEATURES | |
| Highway Lights | Standard |
| Safety Chain | Optional |
| Center splitter | Optional |
