Help reduce downtime to refill

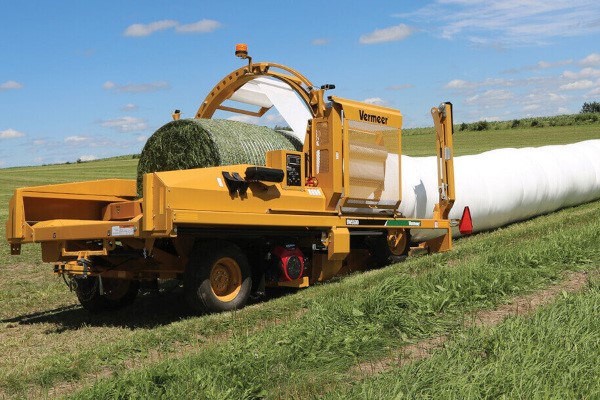

Reduce the risk of plastic film tearing at startup with a progressively moving hoop, which also minimizes wear on hoop-drive components for improved longevity and easier maintenance.
Wrap efficiently and minimize stops during operation with three prestretchers that maximize the time before a plastic film refill is needed.
Confidence in the field
Don’t worry about your film breaking. The optional film break sensor is constantly watching the film so you can focus on the rest of the wrapping process.
You are in full control with the ability to set a consistent number of wraps on each bale, adjusting the number to optimize wrap uses with the digital counter.
Control each wrap with confidence thanks to a combination of features designed to help you make adjustments, monitor, count and place wrapped bales in a straight row.
Convenient operation
Convenient access to the tongue lets you pull the machine away from the line of bales without needing a power drive on the bale wrapper. When hooking up to the machine it can be raised and lowered without starting the machine.
Maximize bale storage
Maximize storage space and improve the appearance of your stored bales with an innovative system that keeps rows straight alongside walls, fences or other bales.
| DIMENSIONS AND WEIGHTS | |
| Transport Length | 18 ft |
| Transport Height | 10 ft |
| Transport Width | 9 ft |
| Machine weight | 5500 lbs |
| Tires | (2) 11Lx15-8, (2) 27x10.5 traction |
| SPECIFICATIONS | |
| Engine | Honda, 13 hp or 20 hp (9.7 kW or 14.9 kW) |
| Engine Start | Electric |
| Hydraulics | Self-contained |
| Hydraulic flow rate | 11.5 gpm (43.5 L/min) for 13-hp (9.7-kW) engine; 14 gpm (53 L/min) for 20-hp (15-kW) engine |
| Control System | Digital with LCD display |
| Hitch | Drawbar |
| Steering | Electric over hydraulic joystick |
| Film Stretcher | (3) 30 in (76.2 cm) x 55% |
| Bale Alignment | Fixed bale guides |
| Wrapping Capacity | 120 bales per hour |
| Hoop Speed | Digital controller adjusted |
| Bale size maximum (diameter x width) | 6-ft x 5-ft (1.7-m x 1.5-m) round |
| FEATURES | |
| Remote Steer, Engine Start/Stop | Standard |
| LED work lights | Optional |
| Discharge Guide Rollers | Optional |
| Plastic Sensor Alert | Optional |
| Spring-assisted final bale push off | Optional |
| Laser guidance | Optional |
