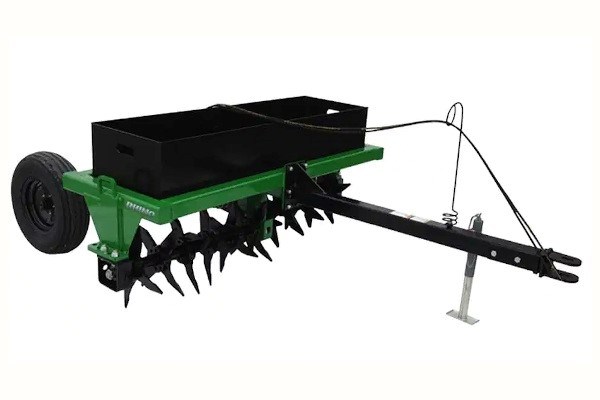

The perfect tool for large-scale, agricultural aeration!

The PA Series pasture aerators' shanks lift and break up compacted soil. This helps with water and nutrient intake and can boost soil conditions.

The 4” x 4” x 5 /16” mainframe construction makes Rhino’s PA Series Aerators built tough for the long-haul. Our hydraulically adjustable transport wheel means easy movement over any terrain. The all-metal weight box welded to the frame Rotors can be adjusted 2½˚, 5˚, & 7½˚ depending on the toughness of your soil and the size of your job!

  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the PA10

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the PA10

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on PA10

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

PA10 Features & Benefits

  • 4” x 4” x 5 /16” Mainframe Construction
  • Hydraulically Adjustable Transport Wheel
  • All-Metal Weight Box Welded to the Frame
  • Adjustable Rotors to 2½˚, 5˚, & 7½˚
  • Heavy-Duty Greaseable Bearings

PA10 Specs & Compare

ModelPA10
Tractor HP Required40-90 HP
Working Width116"
Overall Height (w/ Tines on Ground)44.25"
Overall Width127.63"
Overall Length136" in Transport Position
Weight (w/o Added Weight)2,200 Lbs.
Weight BoxStd. (Welded to Frame)
Maximum Weight Box Capacity2,900 Lbs. (Not Supplied)
Number of Tines32 LH & 32 RH
Tine MaterialForged & Heat-Treated Steel
Tine Hub Spacing7.5"
Tine PenetrationUp to 8.125" Depending on Ground Condition
Frame Construction4" Square Tubing; All-Welded Construction
Hitch TypeHeavy-Duty Pull-Type w/ Clevis Hitch 1.25" Maximum Pin Diameter
Main Tongue Beam4" Square
Hitch Jack10" Top Wind Jack-Mounted to Frame
Rotor Tine Support Hangers1" x 7" Heavy-Duty Hangers
Rotor BearingsHeavy-Duty Greasable Bearings
Rotor Bearing Protection.375" x 3.5" Metal Housing
Rotor Angle Adjustment2.5˚, 5˚, 7.5˚
Tires and Wheels9.5L x 15 8-Ply Tires on 15" 5-Bolt Wheels
Tine Depth ControlAdd Spacer Donuts to Cylinder Rod—Included
Hydraulic Cylinder3.5" x 8"
Transport LockManual Cylinder Lock
Rear Axle PivotGreaseable
