The Small Herd Feed Chore Master

  • Capacities: 270 - 425 ft³
  • Ideal for Skid Steer Loading
  • Reliable Feeding for Pen or Pasture
  • Great Compact / Utility Tractor Companion
  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 800 Series II Trailer Single Screw

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 800 Series II Trailer Single Screw

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 800 Series II Trailer Single Screw

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

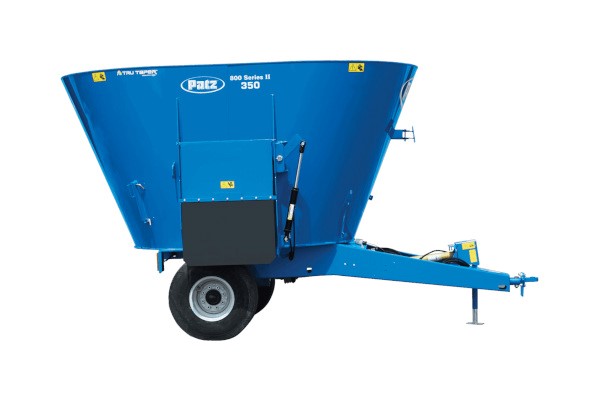

800 Series II Trailer Single Screw Features & Benefits

Standard Features & Options


DRIVE PACKAGE
1-3/8” – 6 Spline Direct Drive

VERTICAL MIXER KNIVES
KNIFE OPTIONS

Patz vertical screw knife positions are laser cut, ensuring optimal knife placement for fiber processing and torque distribution. Select from 10”, 12”, and 21 ½” serrated knives available in tungsten/carbide coating or AR400 steel to optimize particle length.

Add Patz aggressive RAPTOR® knives for bale processing with patented forward-facing design to keep long hay in the mix.

SIDE EXTENSIONS
Rubber side extensions to extend height of tub 9-1/4″.

DISCHARGE CONVEYOR
Collapsible steel side discharge conveyor, hydraulically adjustable with right or left side discharge.  Discharge conveyor, manually adjustable, with right or left side discharge.

TUB MOUNTED MAGNET (OPTIONAL)
Patz patented tub-mount magnet is strong enough to pull tramp metal from the ration while mixing. Encased in stainless steel and tub wall mounted on an easy access hinged assembly for safe, routine removal of errand, ferrous metal.

800 Series II Trailer Single Screw Specs & Compare

800 Series II Trailer270350
Mixer Capacity270 ft³
(7.7 m³)		350 ft³
(9.9 m³)
Capacity with Extensions (9-1/4″)315 ft³
(9.0 m³)		400 ft³
(11.0 m³)
Max. Load Capacity6,750 lbs.
(3,062 kg)		8,750 lbs.
(3,969 kg)
Height95 in.
(2.4 m)		100 in.
(2.5 m)
Width101 in.
(2.6 m)		101 in.
(2.6 m)
Length175 in.
(4.5 m)		182 in.
(4.6 m)
Tractor Horsepower Required55 HP65 HP
Operating Speed540 RPM540 RPM
