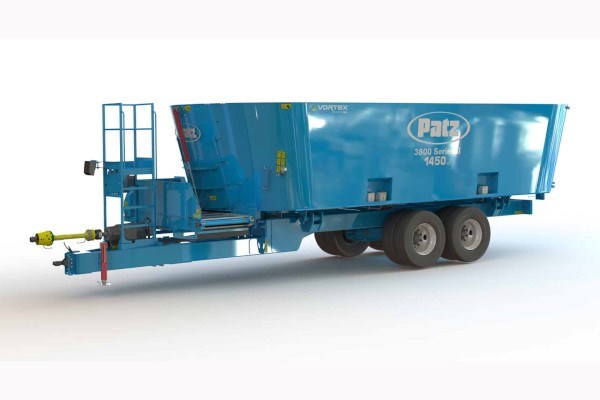

High Capacity Mixing for Conventional Feeding

  • Capacities: 1,450 - 1,825 ft³
  • Patented T3 3-Speed Autoshift technology provides optimal mixing speed and efficient feeding and cleanout
  • Optional Size Kits for expanding your mixing capacities at a lower cost!
  • Split-Dual walking beam with tire placement outside the trailer frame for easy service
  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 3800 Series II Trailer Triple Screw

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 3800 Series II Trailer Triple Screw

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 3800 Series II Trailer Triple Screw

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

3800 Series II Trailer Triple Screw Features & Benefits

Sorry, currently there are no features but check back with us later.

3800 Series II Trailer Triple Screw Specs & Compare

3800 Series II Trailer1450XH1675XH Size Kit1825XH Size Kit
Mixer Capacity1,450 ft³
(41.1 m³)		1,675 ft³
(47.4 m³)		1,825 ft³
(51.7 m³)
Capacity with Extensions (9-1/4″)1,675 ft³
(47.4 m³)		1,675 ft³
(47.4 m³)		1,825 ft³
(51.7 m³)
Max. Load Capacity36,250 lbs.
(16,443 kg)		41,875 lbs.
(18,994 kg)		45,625 lbs.
(20,625 kg)
Height121.4 in.
(3.1 m)		129.8 in.
(3.3 m)		136.5 in.
(3.5 m)
Width109 in.
(2.8 m)		109 in.
(2.8 m)		109 in.
(2.8 m)
Length (2 speed / T3)458.1 in.
(11.6 m)		458.1 in.
(11.6 m)		458.1 in.
(11.6 m)
Tractor Horsepower Required250 HP250 HP250 HP
Operating Speed700 - 1000 RPM700 - 1000 RPM700 - 1000 RPM
