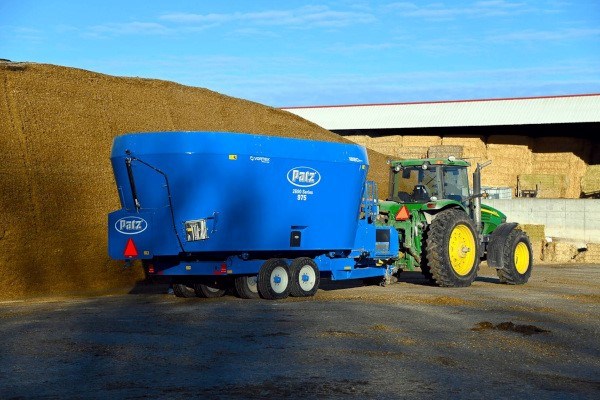

Patz 2600 Series Trailer Twin Screw
The Full-Sized Versatile Vortex® Twin
- Capacities: 975 - 1,220 ft³
- Designed Especially for High-Volume, High-Hay Rations with Uniform Processing
- Ideal for High Capacity, High-Performance and High-Fiber Maintenance Ration Rotation
- Feed more Physically Effective Fiber (peNDF) in Every Ration!
Shopping Tools
2600 Series Trailer Twin Screw Features & Benefits
DRIVE PACKAGE
Drive package options include: 2-Speed Manual, T2® AutoShift, T3® Autoshift. Includes oil cooling system.
VORTEX® SCREW
Vortex® Screw mixes quickly without compromising feed quality. Constructed of welded steel with 5/8″ cupped fliting. Multi-angle design option. Pre-drilled to accept knives. Single or dual kicker available.
VERTICAL MIXER KNIVES
KNIFE OPTIONS:
Patz vertical screw knife positions are laser cut, ensuring optimal knife placement for fiber processing and torque distribution. Select from 10”, 12”, and 21 ½” serrated knives available in tungsten/carbide coating or AR400 steel to optimize particle length.
Add Patz aggressive RAPTOR® knives for bale processing with patented forward-facing design to keep long hay in the mix.
XH (EXTRA HEAVY) UNITS
XH (Extra Heavy) units feature a welded steel tub with 3/8″ thick walls and a 3/4″ reinforced bottom.
SIZE KIT
Metal extension to increase basic unit mixing capacity. Add overall height 9-1/4″ or 16″.
SIDE EXTENSIONS, STEEL/RUBBER
Steel / Rubber side extensions to extend height of tub 9-1/4″.
DISCHARGE CONVEYOR
Discharge conveyor for optional front door opening can be trailer mounted (feed not weighed on conveyor) or tub mounted (feed weighed on conveyor). Choice of fixed or sliding flat conveyors with right-hand, left-hand, or reversible discharge. Flat with incline and fixed incline conveyors with right-hand or left-hand discharge also available.
CAMERA PACKAGE
View rear of mixer from tractor cab while backing up or discharging feed from optional rear commodity door. Includes 7″ LCD monitor and weatherproof, shock-resistant infrared camera for night vision.
TUB MOUNTED MAGNET (OPTIONAL)
Patz patented tub-mount magnet is strong enough to pull tramp metal from the ration while mixing. Encased in stainless steel and tub wall mounted on an easy access hinged assembly for safe, routine removal of errand, ferrous metal.
2600 Series Trailer Twin Screw Specs & Compare
| 2600 Series Trailer | 975/975XH | 1115 ft³ Size Kit | 1220 ft³ Size Kit |
| Mixer Capacity | 975 ft³ (27.6 m³) | 975 ft³ (27.6 m³) | 975 ft³ (27.6 m³) |
| Capacity with Extensions | 1,115 ft³ (31.6 m³) | 1,115 ft³ (31.6 m³) | 1,220 ft³ (34.5 m³) |
| Max. Load Capacity | 24,375 lbs. (11,056 kg) | 27,875 lbs. (12,644 kg) | 30,500 lbs. (13,835 kg) |
| Height | 109.8 in. (2.8 m) | 119 in. (3.0 m) | 126 in. (3.2 m) |
| Width | 123.5 in. (3.1 m) | 123.5 in. (3.1 m) | 123.5 in. (3.1 m) |
| Length | 330.5 in. (8.4 m) | 330.5 in. (8.4 m) | 330.5 in. (8.4 m) |
| Tractor Horsepower Required | 145 HP | 170 HP | 190 HP |
| Operating Speed | 700 - 1000 RPM | 700 - 1000 RPM | 700 - 1000 RPM |
