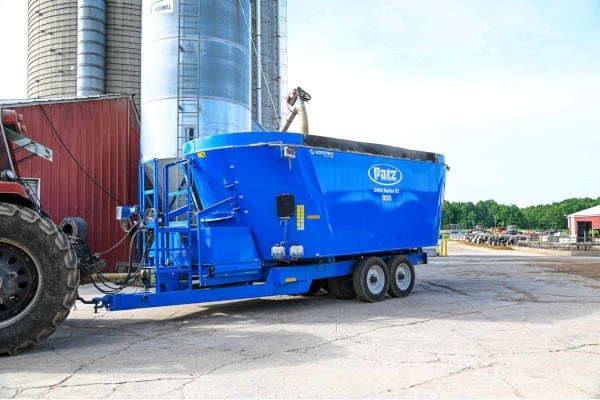

Patz 2400 Series III Trailer Twin Screw
The Professional Producer's Preferred Full-Size Vortex® Twin
- Capacities: 810 - 1270 ft³
- Premier, High-Tech Trailer Platform Proves that Wider-is-Better for Mix Performance
- Ideal for High-Performance Rations in High Pen-Count Groups and Fast-Paced Feeding
- Feed in Full Control with Multiple, Programmable Transmission Options from Manual to Auto
Shopping Tools
2400 Series III Trailer Twin Screw Features & Benefits
DRIVE PACKAGE
Drive package options include: 2-speed manual shift, T2® AutoShift, or T3® Autoshift. Includes oil cooling system.
VORTEX® SCREW
Vortex® Screw mixes quickly without compromising feed quality. Constructed of welded steel with 5/8″ cupped fliting. Multi-angle design option. Pre-drilled to accept knives. Single or dual kicker available.
RAPTOR® KNIVES
Engineered to complement our standard knives, the Patented RAPTOR® knife features a forward-facing design to dig in, hook, & cut bales faster and more aggressively. Built to last with AR steel, the RAPTOR® knife is ideal for high-hay rations including large round or square bales and/or baleage. RAPTOR® knives should be used in the first two or three slots from the top of the screw down, depending on knife formation. Available for all Vertical Mixer Series. Choice of five knife sizes. Contact your local Patz Mixer Dealer for details.
XH (EXTRA HEAVY) UNITS
XH (Extra Heavy) units feature a welded steel tub with 3/8″ thick walls and a 3/4″ reinforced bottom.
SIDE EXTENSIONS, STEEL/RUBBER
Adds additional mixing capacity. Extends tub height 9-1/4″.
DISCHARGE CONVEYOR
Discharge conveyor for optional front door opening can be trailer mounted (feed not weighed on conveyor) or tub mounted (feed weighed on conveyor). Choice of fixed or sliding flat conveyors with right-hand, left-hand, or reversible discharge. Flat with incline and fixed incline conveyors with right-hand or left-hand discharge also available.
OPTIONAL TUB MOUNTED MAGNET*
Encased in stainless steel, this magnet is strong enough to pull tramp metal from the ration while mixing. Mounted into the Patz vertical Mixer tub wall, the hinged assembly with quick open lever is designed for safe removal of tramp metal.
Exclusive to Patz – only to be installed on Patz Vertical Mixers. Factory and field installation is available on ALL Patz Stationary, Trailer, and Truck Mount Vertical Mixers.
CAMERA PACKAGE
View rear of mixer from tractor cab while backing up or discharging feed from optional rear commodity door. Includes 7″ LCD monitor and weatherproof, shock-resistant infrared camera for night vision.
SELF-STEERING REAR AXLE
Available on the 1,100 cu. ft Patz 2400 Series III Trailer Twin Screw Vertical Mixer: Self-steering rear axle with heavy-duty spring suspension and four super single truck tires. Rear axle self-steers utilizing lateral forces that are applied to the tires from contact with ground. The forces steer the implement in the appropriate direction, minimizing tire wear and stresses on axles, hubs, spindles, and suspension pipe.
2400 Series III Trailer Twin Screw Specs & Compare
| 2400 Series III Trailer | 810/810XH | 950/950XH | 1100/1100XH |
| Mixer Capacity | 810 ft³ (22.9 m³) | 950 ft³ (26.9 m³) | 1100 ft³ (31.1 m³) |
| Capacity with Extensions (9-1/4″) | 950 ft³ (27 m³) | 1,100 ft³ (31 m³) | 1,270 ft³ (36 m³) |
| Max. Load Capacity | 20,250 lbs. (9,185 kg) | 23,750 lbs. (10,773 kg) | 27,500 lbs. (12,474 kg) |
| Height | 99 in. (2.5 m) | 108-1/4 in. (2.8 m) | 120 in. (3.1 m) |
| Width | 109 in. (2.8 m) | 109 in. (2.8 m) | 109 in. (2.8 m) |
| Length | 325 in. (8.3m) | 329 in. (8.4 m) | 333 in. (8.5 m) |
| Tractor Horsepower Required | 125 HP | 145 HP | 170 HP |
| Operating Speed | 1000 RPM | 1000 RPM | 1000 RPM |
