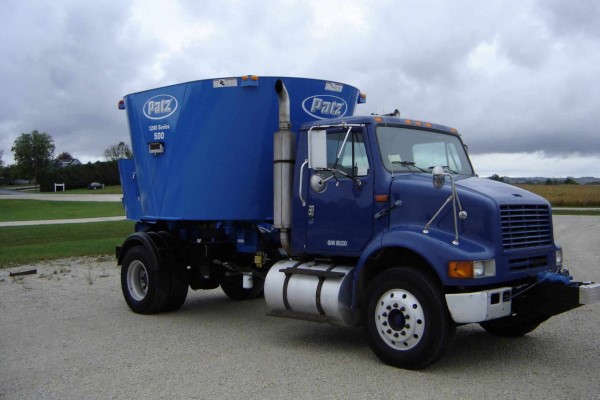

Patz 1200 Series Truck Mount Single Screw
Speed & Simplicity in the Barn and on the Road
- Capacities: 420 - 690 ft³
- Precision-fitted, AR400-Component Vortex® screw with cupped flighting creates the Patz signature rolling-boil
- Open-Chassis, 4-Point Scale Truck Mount design for custom drive package innovation and updates
- 1000 RPM Planetary Input
- 4 Individual Door Locations
- Tub-Mounted* Inclined or Reversing Front Discharge Conveyors
- 36" or 54" Side Discharge Conveyors
- *Weighs Feed on the Conveyor
Shopping Tools
1200 Series Truck Mount Single Screw Features & Benefits
DRIVE PACKAGE
Drive package options include: 2-speed manual shift, T2® AutoShift, or T3® Autoshift. Includes oil cooling system.
VORTEX® SCREW
Vortex® Screw mixes quickly without compromising feed quality. Constructed of welded steel with 5/8″ cupped fliting. Multi-angle design option. Pre-drilled to accept knives. Single or dual kicker available.
RAPTOR® KNIVES
Engineered to complement our standard knives, the Patented RAPTOR® knife features a forward-facing design to dig in, hook, & cut bales faster and more aggressively. Built to last with AR steel, the RAPTOR® knife is ideal for high-hay rations including large round or square bales and/or baleage. RAPTOR® knives should be used in the first two or three slots from the top of the screw down, depending on knife formation. Available for all Vertical Mixer Series. Choice of five knife sizes. Contact your local Patz Mixer Dealer for details.
XH (EXTRA HEAVY) UNITS
XH (Extra Heavy) units feature a welded steel tub with 3/8″ thick walls and a 3/4″ reinforced bottom.
SIDE EXTENSIONS, STEEL/RUBBER
Adds additional mixing capacity. Extends tub height 9-1/4″.
DISCHARGE CONVEYOR
Discharge conveyor for optional front door opening can be trailer mounted (feed not weighed on conveyor) or tub mounted (feed weighed on conveyor). Choice of fixed or sliding flat conveyors with right-hand, left-hand, or reversible discharge. Flat with incline and fixed incline conveyors with right-hand or left-hand discharge also available.
OPTIONAL TUB MOUNTED MAGNET*
Encased in stainless steel, this magnet is strong enough to pull tramp metal from the ration while mixing. Mounted into the Patz vertical Mixer tub wall, the hinged assembly with quick open lever is designed for safe removal of tramp metal.
Exclusive to Patz – only to be installed on Patz Vertical Mixers. Factory and field installation is available on ALL Patz Stationary, Trailer, and Truck Mount Vertical Mixers.
CAMERA PACKAGE
View rear of mixer from tractor cab while backing up or discharging feed from optional rear commodity door. Includes 7″ LCD monitor and weatherproof, shock-resistant infrared camera for night vision.
SELF-STEERING REAR AXLE
Available on the 1,100 cu. ft Patz 2400 Series III Trailer Twin Screw Vertical Mixer: Self-steering rear axle with heavy-duty spring suspension and four super single truck tires. Rear axle self-steers utilizing lateral forces that are applied to the tires from contact with ground. The forces steer the implement in the appropriate direction, minimizing tire wear and stresses on axles, hubs, spindles, and suspension pipe.
1200 Series Truck Mount Single Screw Specs & Compare
| 1200 Series Truck Mount | 420 | 500 | 615 |
| Mixer Capacity | 420 ft³ (11.8 m³) | 500 ft³ (14.2 m³) | 615 ft³ (17.4 m³) |
| Capacity with Extensions | 490 ft³ (13.9 m³) | 575 ft³ (16.3 m³) | 690 ft³ (19.5 m³) |
| Max. Load Capacity | 10,500 lbs. (4,763 kg) | 12,500 lbs. (5,670 kg) | 15,375 lbs. (6,974 kg) |
| Height, Planetary | 116 in. (2.9 m) | 125.4 in. (3.2 m) | 146.5 in. (3.7 m) |
| Height, Hydraulic Wheel Motor | 107.1 in. (2.7 m) | 116.5 in. (3.0 m) | 137.6 in. (3.5 m) |
| Width | 109 in. (2.8 m) | 109 in. (2.8 m) | 109 in. (2.8 m) |
| Length | 152.75 in. (3.9 m) | 159.5 in. (4.1 m) | 168.5 in. (4.3 m) |
| PTO Operating Speed | 1000 RPM | 1000 RPM | 1000 RPM |
