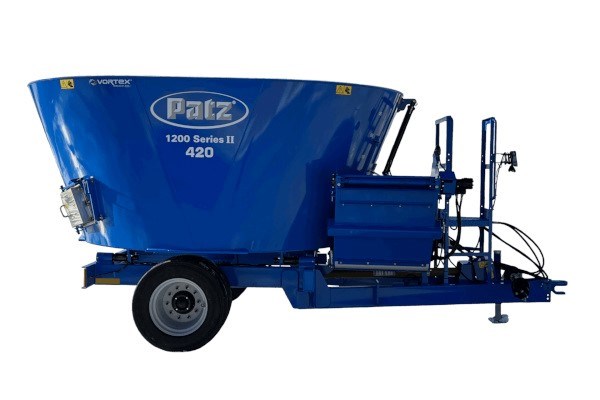

Patz 1200 Series II Trailer Single Screw
The Working Farm Feeder
- Capacities: 420 - 690 ft³
- Optimal Mix for Multiple Pens and Sheds
- Ideal for Feeding from Bags, Bales, and Small Bunkers
- Available in Low Profile 420 to High Capacity 615. The most mobile mixer in its class.
Shopping Tools
1200 Series II Trailer Single Screw Features & Benefits
Standard Features & Options
DRIVE PACKAGE
Drive package options include: Direct, 2-Speed Manual, 2-Speed Powershift; 6/20/21 – Spline. Includes oil cooling system.
VORTEX® SCREW
Welded steel Tru Taper® cone-top screw with 1/2″ (13 mm) thick flighting. Laser cut holes to accept knives. Dual kicker screw design increases discharge output and speeds up cleanout. Unique design of steel screw provides quick, thorough mixing and even discharge
VERTICAL MIXER KNIVES
KNIFE OPTIONS:
Patz vertical screw knife positions are laser cut, ensuring optimal knife placement for fiber processing and torque distribution. Select from 10”, 12”, and 21 ½” serrated knives available in tungsten/carbide coating or AR400 steel to optimize particle length.
Add Patz aggressive RAPTOR® knives for bale processing with patented forward-facing design to keep long hay in the mix.
SIDE EXTENSIONS
Rubber side extensions to extend height of tub 9-1/4″.
DISCHARGE CONVEYOR
Discharge conveyor for optional front door opening can be trailer mounted (feed not weighed on conveyor) or tub mounted (feed weighed on conveyor). Choice of fixed or sliding flat conveyors with right-hand, left-hand, or reversible discharge. Flat with incline and fixed incline conveyors with right-hand or left-hand discharge also available.
TUB MOUNTED MAGNET (OPTIONAL)
Patz patented tub-mount magnet is strong enough to pull tramp metal from the ration while mixing. Encased in stainless steel and tub wall mounted on an easy access hinged assembly for safe, routine removal of errand, ferrous metal.
Exclusive to Patz – only to be installed on Patz Vertical Mixers. Factory and field installation is available on ALL Patz Stationary, Trailer, and Truck Mount Vertical Mixers.
1200 Series II Trailer Single Screw Specs & Compare
| 1200 Series II Trailer | 420 | 500 | 615 |
| Mixer Capacity | 420 ft³ (11.8 m³) | 500 ft³ (14.2 m³) | 615 ft³ (17.4 m³) |
| Capacity with Extensions (9-1/4″) | 490 ft³ (14.0 m³) | 575 ft³ (16.0 m³) | 690 ft³ (19.5 m³) |
| Max. Load Capacity | 10,500 lbs. (4,763 kg) | 12,500 lbs. (5,670 kg) | 15,375 lbs. (6,974 kg) |
| Height with Single Flotation Tires | 103.9 in. (2.7 m) | 112.9 in. (2.9 m) | 125.9 in. (3.2 m) |
| Height with Dual Tires | 97.3 in. (2.5 m) | 106.3 in. (2.7 m) | 119.3 in. (3.1 m) |
| Width | 109 in. (2.8 m) | 109 in. (2.8 m) | 109 in. (2.8 m) |
| Length | 220 in. (5.6 m) | 223.8 in. (5.7 m) | 228 in. (5.8 m) |
| Tractor Horsepower Required | 85 HP | 90 HP | 110 HP |
| PTO Operating Speed | 540 or 1000 RPM | 1000 RPM | 1000 RPM |
