Orthman XD Pull-Type Frames

XD Pull-Type Frames

Rugged pull-type strip-till frames for long-term performance
Built for today’s high-acreage, high-performing farming operations, the 1tRIPr XD strip-tillage tool features a large frame design with innovative row units and a wide variety of fertilizer delivery options

XD Pull-Type Frames
The XD pull-type models of 1tRIPr strip-tillage tools are available in 8 to 18 row configurations with row spacings ranging from 20” to 40”.

Standard Toolbar
The standard double 7" x 7" toolbar can withstand the demanding needs of any strip-till application, while the transport lighting and CAT 3/4 hitch (optional CAT 5) ensure safer road transport

Vertical Fold Toolbar
The vertical fold toolbar design features in-line boring of the fold hinges for smoother and more reliable operation. Narrow transport models are available, depending on the size of machine, for safer transport from field to field

Undercarriage
XD models feature rear-mounted 380/90 R46 single wheels and tires, with optional 480/80 R50 single wheels and tires or duals for increased flotation

XD Combo Model
XD combo models are designed to hook 3-point mounted planters to the rear of the strip-tillage machine for one-pass planting and feature six 385/65 R22.5 tires. XD combo models are available in 8-, 12- or 16-row configurations with 30" row spacing

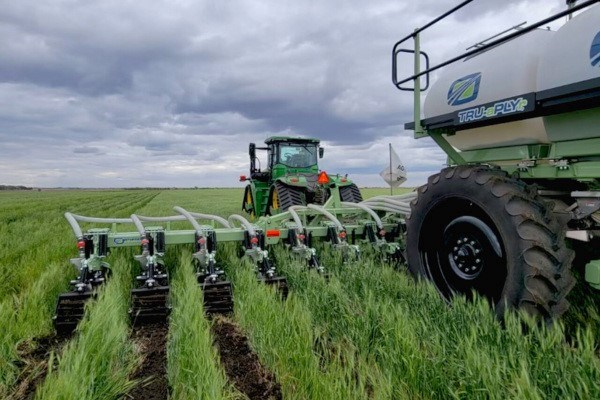

TRU-aPLYr Fertilizer Systems

Maximizing Precision and Efficiency
The TRU-aPLYr dry fertilizer system features dual 6-ton tanks for a 12-ton total capacity of dry fertilizer.  Each hopper features a scale system to accurately track the weight of each hopper individually, weather-tight lids and debris filter screens.  Fertilizer is precisely and accurately applied with an innovative electric-drive metering system, a standard ISOBUS rate controller that integrates with field prescriptions, 4- or 2-section plumbing and a high-performance fan that is designed for higher application rates.

TRU-aPLYR Dry
The TRU-aPLYr dry fertilizer system features dual 6-ton tanks for a 12-ton total capacity of dry fertilizer.  Each hopper features a scale system to accurately track the weight of each hopper individually, weather-tight lids and debris filter screens.  Fertilizer is precisely and accurately applied with an innovative electric-drive metering system, a standard ISOBUS rate controller that integrates with field prescriptions, 4- or 2-section plumbing and a high-performance fan that is designed for higher application rates.

TRU-aPLYr Liquid
The TRU-aPLYr liquid fertilizer system features a 2,000-gallon tank capacity for 3-point mounted 1tRIPr models to apply liquid fertilizer in-row during the strip-tillage pass.  This system can be mounted on 4-row to 16-row 1tRIPr models and can accommodate row spacings from 20” to 40” depending on toolbar size.  For 3-point models, the TRU-aPLYr system undercarriage can be equipped with 46” or 50” tires mounted on single wheels.
