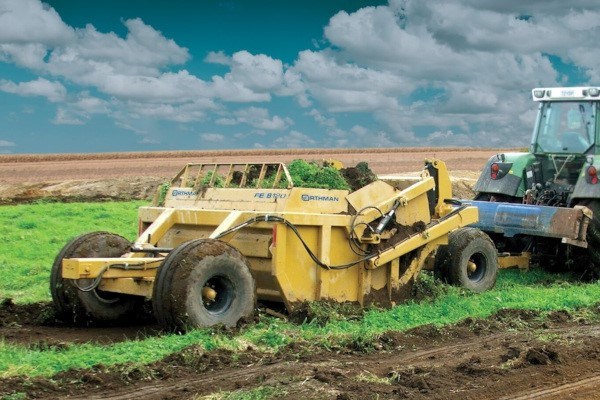

Orthman FE/FX -- Forced Ejection
Load fast, unload easy, up to 10 cubic yards at a time
With the FE and FX forced ejection scrapers, you'll have the power to precisely move earth, transport the load any distance and create the proper slope. Plus, they provide a generous 13" of ground clearance and a wide stance for handling rough work sites.
Shopping Tools
FE/FX -- Forced Ejection Features & Benefits
FE Sizes
The FE style features a dolly-wheel hitch for minimizing drawbar weight and is available in a 7' width in 5- or 7 1/2-yard capacities, or 8' with 10-yard capacity.
FX Sizes
The FX models are designed with a drawbar-style hitch that provides increased weight transfer to the tractor for greater control and is available in a 7' width and 5- or 7 1/2-yard capacities.
FE/FX Undercarriage
Both models feature large-diameter 3" spindles with 8,000-pound rated hubs for handling the heaviest loads.
FE/FX Design
The easy-to-operate ejector wall and gate use just one SCV and a sequencing valve for simultaneous control. A precise cutting depth of up to 3 1/2" is achieved with replaceable center cutting blades featuring 5/8"-thick x 8"-tall steel, with the other two being 5/8" x 6". A frost bit is standard equipment to increase scraper suction for continuous cutting power in tough soils. The smooth interior design and heavy-duty, greaseable steel guides provide long service life and reliability. The swiveling pintle hitch provides greater operator comfort with consistent operation.
FE/FX -- Forced Ejection Specs & Compare
| Model | FE750 Forced Ejection Scrapers | FE775 Forced Ejection Scrapers | FE8120 Forced Ejection Scrapers |
| Cutting Width | 7' | 7' | 8' |
| Capacity Cubic Yards | 5 | 7.5 | 10 |
| Cutting Blade | 5/8" x 8" Center Two 5/8" x 6" Outer | 5/8" x 8" Center Two 5/8" x 6" Outer | 5/8" x 8" Center Two 5/8" x 6" Outer |
| Max Cut Depth | 3" | 5" | 5" |
| Tires | Front 11L x 15 Rear 11L x 15 | Front 16.5L x 16.1 Rear 16.5L x 16.1 | Front 16.5L x 16.1 Rear 21.5L x 16.1 |
| Trans. Width | 7' 10' | 8' | 9' 8' |
| Trans. Height | 5' 8" | 6' 6" | 6' 6" |
| Trans. Length | 19' | 23' | 25' 4" |
| Approx. Weight (lbs.) | 4,700 | 6,750 | 9,080 |
| Min H.P. | 75 to 125 | 100 to 150 | 185 to 250 |
| Model | FX750 Forced Ejection Scrapers | FX775 Forced Ejection Scrapers |
| Cutting Width | 7' | 7' |
| Capacity Cubic Yards | 5 | 7.5 |
| Cutting Blade | 5/8" x 8" Center Two 5/8" x 6" Outer | 5/8" x 8" Center Two 5/8" x 6" Outer |
| Max Cut Depth | 3.5" | 3.5" |
| Tires | Rear 11L x 15 | Rear 16.5L x 16.1 |
| Trans. Width | 8' 4" | 8' 8" |
| Trans. Height | 5' | 5' 8" |
| Trans. Length | 19' | 22' |
| Approx. Weight (lbs.) | 5,020 | 7,120 |
| Min H.P. | 75 to 125 | 100 to 150 |
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
