Orthman CS/CSX -- Commercial Duty
Built to work — hard — and still give you precise control
Orthman's line of CS/CSX scrapers are engineered with advanced design features to ensure maximum efficiency in soil management operations. These scrapers are capable of handling a wide range of tasks, including land leveling, ditching, and terrace construction, with precision and speed. Their innovative design minimizes soil compaction and disturbance while optimizing productivity.
Shopping Tools
CS/CSX -- Commercial Duty Features & Benefits

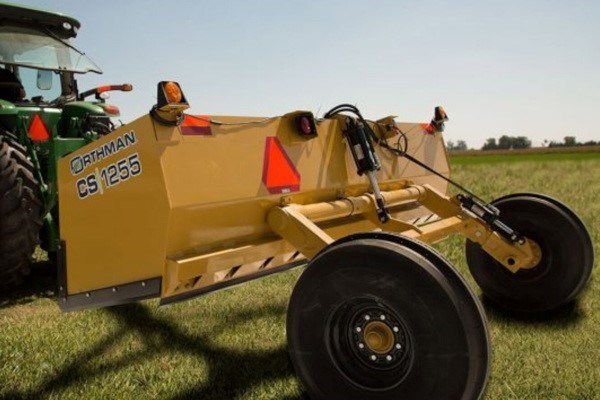

CS Sizes
The CS lineup of commercial scrapers is available in 10’, 12’ or 14’ widths with capacities of 4.5, 5.5 or 6.5 cubic yards respectively. The dual 1/2”-thick x 6”-tall replaceable cutting blades cut up to 5 1/4” deep with 25” dump height. The heavy-duty tongue with swivel clevis hitch is designed with an A-frame support and hydraulic tilt axle for precision grading and balancing the load.
CS Undercarriage
Large 8-bolt hubs with 11L x 16.1 8-ply tires and wheels with replaceable spindles provide enhanced stability and maintenance ease.
CSX Sizes
For the strongest box scraper, look to the heavy-duty CSX commercial scraper lineup. The 10', 12' and 14' sizes provide capacities of 5, 7 and 9 cubic yards respectively to meet your needs. The 36" dump height makes it ideal for larger feedlots and industrial construction sites. Featuring a massive box-beam frame and heavy-duty A-frame tongue with swiveling clevis hitch, you'll get the toughest scraper in the industry.
CSX Undercarriage
The load is easily handled with large-diameter tires mounted on 8-bolt hubs with replaceable spindles for extra flotation and durability.
CS/CSX -- Commercial Duty Specs & Compare
| Model | CS1045 Commercial Scraper | CS1255 Commercial Scraper | CS1465 Commercial Scraper |
| Cutting Width | 10' | 12' | 14' |
| Capacity Cubic Yards | 4.5 | 5.5 | 6.5 |
| Cutting Blade | Two 1/2" x 6" x 72" | Two 1/2" x 6" x 72" | Two 1/2" x 6" x 84" |
| Max Cut Depth | 5 1/4" | 5 1/4" | 5 1/4" |
| Tires | Rear 16.5L x 16.1 x 14 | Rear 16.5L x 16.1 x 14 | Rear 16.5L x 16.1 x 14 |
| Trans. Width | 10 Ft. 4 In. | 12 Ft. 4 In. | 14 Ft. 4 In. |
| Trans. Height | 5 Ft. 6 In. | 5 Ft. 6 In. | 5 Ft. 6 In. |
| Trans. Length | 15 Ft. | 15 Ft. | 15 Ft. |
| Approx. Weight (lbs.) | 2,800 | 3,100 | 3,300 |
| Min H.P. | 125 to 175 | 145 to 200 | 160 to 225 |
| Model | CSX1050 Commercial Extra Scraper | CSX1270 Commercial Extra Scraper | CSX1490 Commercial Extra Scraper |
| Cutting Width | 10' | 12' | 14' |
| Capacity Cubic Yards | 5 | 7 | 9 |
| Cutting Blade | Two 5/8" x 8" x 60" | Two 5/8" x 8" x 72" | Two 5/8" x 8" x 84" |
| Max Cut Depth | 10" | 10" | 10" |
| Tires | Rear 16.5L x 16.1 x 14 | Rear 16.5L x 16.1 x 14 | Rear 16.5L x 16.1 x 14 |
| Trans. Width | 10' 4" | 12' 4" | 14' 4" |
| Trans. Height | 7' 6" | 7' 6" | 7' 6" |
| Trans. Length | 17' 2" | 17' 2" | 17' 2" |
| Approx. Weight (lbs.) | 4,180 | 4,470 | 4,750 |
| Min H.P. | 150 to 225 | 175 to 250 | 200 to 275 |
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
