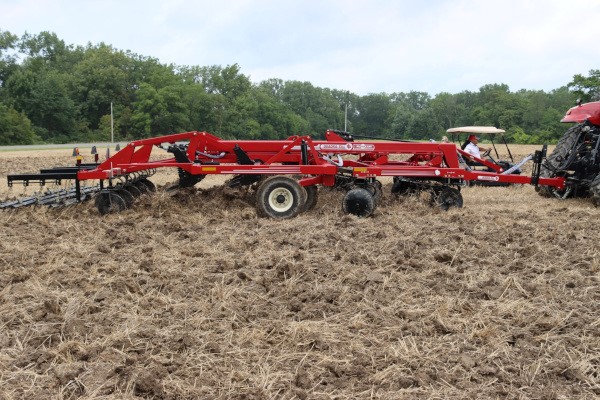

McFarlane Quadra-Till
The ideal primary tillage machine for heavy residue situations.
The Quadra-Till is designed as a one-pass fall tillage tool that will size residue, shatter the soil profile across the width of the machine, incorporate the residue evenly and level the future seedbed. In the spring a Cobra Universal Tillage machine can make one light pass and quickly prepare a perfect seedbed for the next crop to be planted into. The McFarlane vertical tillage system will ensure optimum seedbed preparation for a better crop and increased profits.
Corn-on-corn acres are increasing to meet increasing demand throughout the world and to feed ethanol production. Higher yields and continuous corn rotations create a heavy residue environment that conventional tillage machines cannot efficiently handle. Until now, a primary tillage tool needed to be followed by multiple passes with finishing tools to prepare a seedbed for planting. The Quadra-Till will help you achieve your perfect seedbed.
Shopping Tools
Quadra-Till Features & Benefits
- Main Frame - Disk frame constructed of 3"x6" tubing, chisel frame is 4"x6" and the main frame utilizes 6"x8" tubing.
- Disk Spring System - Coil spring system protects disk frame from obstructions such as rocks and stumps. Also prevents premature wear when operating in extremely hard ground conditions or frost. Initial spring tension and two-position adjustment ensures consistent operating depth, yet allows the disk gangs to trip 4" upwards.
- Disk Frame - Fully adjustable disk gangs offer 12°, 14° and 16° operating angle as well as hydraulically controlled depth setting. The blades are set on 10" spacing to provide a 5" effective cut for thorough residue sizing. Gang mounted reversible scrapers ensure the blades stay clean of debris.
- Chisel Shanks - Heavy-duty clamp style shank mounts on 15" spacing ensures even shatter across the width of the machine. The 2½" x 1¼" edge-bent shanks allow for 37" of under frame clearance. 3" twisted shovels are standard with 2" straight points or 4" twisted shovels available as an option. Auto reset chisel shanks with 1600lbs. point pressure and a 14" trip height.
- Leveler Disk - Hydraulically adjustable leveling disk system with depth indicator levels ridges left by chisel shanks. Individually mounted cushion bearing standards ensures long life and dependability.
- Harrow - Industry leading, fully flexible 4 bar spike harrow completes the leveling process. Heavy duty angle harrow bars feature ¾" square x 11" long high strength teeth. The 11" tooth spacing provides 2¾" of effective tooth spacing.
- Operating range 5 to 6.5 mph
- ¼" thick, 24" diameter disk blades
- 1½" square arbor bolt
- Triple lip trunnion mount bearings
- Heavy-Duty reversible scrapers
- Single point depth control
- Disk gang operating depth up to 4"
- 2 x ¼ auto reset shanks
- Chisel operating depth up to 12"
- 14" shank trip height
Quadra-Till Specs & Compare
| Model | Cutting Width | Working Width | Approx. Weight | Transport Width | HP Range | Number of Shanks |
| QT-207 | 11'-10" | 8'-9" | 13,291 | 12'-8" | 175-210 | 7 |
| QT-209 | 13'-5" | 11'-3" | 14,497 | 14'-7" | 225-270 | 9 |
| QT-211 | 16'-8" | 13'-9" | 16,763 | 17'-3" | 275-330 | 11 |
| QT-213F | 18'-3" | 16'-3" | 19,089 | 16'-4" | 325-390 | 13-Folding |
| QT-215F | 21'-0" | 18'-9" | 22,795 | 16'-2" | 375-450 | 15-Folding |
| QT-217F | 23'-5" | 21'-3" | 26,940 | 16'-2" | 425-510 | 17-Folding |
| Rolling Basket and 3 Bar Harrow | ||||||
| QT - 207-RB | 11'-10" | 8'-9" | 13,859 | 12'-8" | 175-210 | 7 |
| QT - 209 - RB | 13'-5" | 11'-3" | 16,240 | 14'-7" | 225-270 | 9 |
| QT - 211 - RB | 16'-8" | 13'-9" | 18,790 | 17'-3" | 275-330 | 11 |
| QT - 213F - RB | 18'-3" | 16'-3" | 21,256 | 16'-4" | 325-390 | 13-Folding |
| QT - 215F - RB | 21'-0" | 18'-9" | 24,819 | 16'-2" | 375-450 | 15-Folding |
| QT - 217F - RB | 23'-5" | 21'-3" | 28,000 | 16'-2" | 425-510 | 17-Folding |
