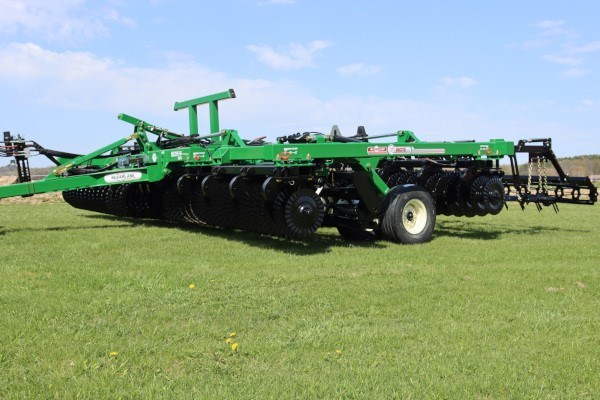

McFarlane IC 5151
The Incite® 5100 Series tillage tool is the first-ever Universal Tillage® tool on the market. The Incite is an evolution in vertical tillage, as it provides the flexibility to adjust to different soil types and conditions from field-to-field and from year-to-year. The versatility of this tillage tool allows conservation tillage and minimum-tillage growers to accomplish in a single pass what once would take multiple passes with different tillage equipment.
With working widths from 14' to 51', the Incite is loaded with innovative, user-friendly design features such as the Universal Tillage® selector that allows for on-the-go hydraulic adjustment of disc gang angle
Shopping Tools
IC 5151 Features & Benefits
- Universal Tillage® Selector - Allows operator on-the-go disk angle adjustment between selected range points. Choose from 3°, 6°and 9°.
- Hydraulic Dura-Reel® Height Adjust - Adjustable reel depth from disk depth to 8" above the bottom of the disk blade.
- INCIZOR® Blades - Unique blade featuring 22" diameter 6mm razor-sharp reversed crimped blades for greater strength. Capable of 6" depth.
- Dura-Reel® Patent pending - 7-blade 18" diameter open center reel with no center shaft for better material flow and resists plugging in wet, sticky soil. *5-Bolt hubs for added strength and durability.
- Rolling Basket - Provides the finishing touch ‒ 8-high carbon flat bars have adjustable down pressure to meet varying field conditions. Convenient settings for more aggressive clod sizing or less aggressive for soil separating.
- 3-Bar Spike Tooth Harrow - 3-Bar Spike Tooth Harrow follows the ground closely. Its flexibility allows residue to flow and easily raises or lowers to conform to various soil and residue conditions.
- Swept Back Reel Design - Allows for better residue and rock clearance.
- Articulating Ball Hitch - New articulating ball hitch for folding models provides a close fit with the hitch pin, reducing fatigue on the tractor draw-bar and implement hitch
- Maintenance Free Walking Tandem Axle on Mainframe and Wing
- Spring Cushion Level Lift to Absorb Shock
- Single Point Depth Stop
- GBGI - Low maintenance sealed cast hub style bearing for increased durability
- Sealed Service-Free Trunnion Bearing with 1 3/4" round center shaft.
- UHMW 6mm Standard Axle Bearing
IC 5151 Specs & Compare
| Model Number | IC 5151 |
| Cuttin Width | 51' 3" |
| Approx. Weight (lbs) | 40,500 |
| Transport Height | 14' 8" |
| Transport Width | 19' 2" |
| Approx. HP Required | 408-602 |
| Acres/hr @ 6-9mph | 31-46 |
Double Rolling Basket
| Model Number | IC 5151-DRB |
| Cuttin Width | 51' 3" |
| Approx. Weight (lbs) | 39,867 |
| Transport Height | 14' 8" |
| Transport Width | 19' 2" |
| Approx. HP Required | 410-602 |
| Acres/hr @ 6-9mph | 31-46 |
5 Bar Harrow
| Model Number | IC 5151-5FA |
| Cuttin Width | 51' 3" |
| Approx. Weight (lbs) | 40,500 |
| Transport Height | 14' 8" |
| Transport Width | 19' 2" |
| Approx. HP Required | 410-602 |
| Acres/hr @ 6-9mph | 31-46 |
