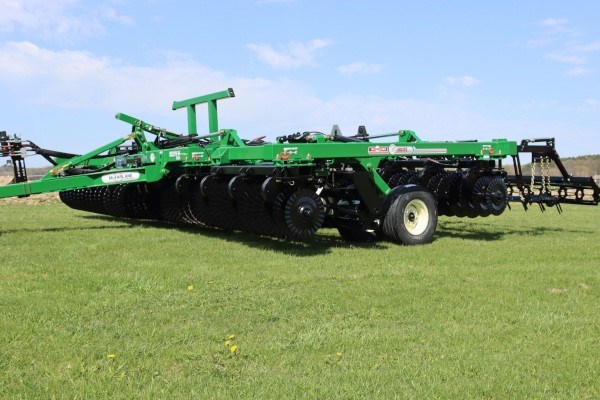

McFarlane Incite - Universal Tillage
No matter what field condition, spring or fall, the Incite from McFarlane is the tool for the job.
The Incite® 5100 Series tillage tool is the first-ever Universal Tillage® tool on the market. The Incite is an evolution in vertical tillage, as it provides the flexibility to adjust to different soil types and conditions from field-to-field and from year-to-year. The versatility of this tillage tool allows conservation tillage and minimum-tillage growers to accomplish in a single pass what once would take multiple passes with different tillage equipment.
With working widths from 14' to 51', the Incite is loaded with innovative, user-friendly design features such as the Universal Tillage® selector that allows for on-the-go hydraulic adjustment of disc gang angles.
Shopping Tools
Incite - Universal Tillage Features & Benefits
- Universal Tillage® Selector - Allows operator on-the-go disk angle adjustment between selected range points. Choose from 3°, 6°and 9°.
- Hydraulic Dura-Reel® Height Adjust - Adjustable reel depth from disk depth to 8" above the bottom of the disk blade.
- INCIZOR® Blades - Unique blade featuring 22" diameter 6mm razor-sharp reversed crimped blades for greater strength. Capable of 6" depth.
- Dura-Reel® Patent pending - 7-blade 18" diameter open center reel with no center shaft for better material flow and resists plugging in wet, sticky soil. *5-Bolt hubs for added strength and durability.
- Rolling Basket - Provides the finishing touch ‒ 8-high carbon flat bars have adjustable down pressure to meet varying field conditions. Convenient settings for more aggressive clod sizing or less aggressive for soil separating.
- 3-Bar Spike Tooth Harrow - 3-Bar Spike Tooth Harrow follows the ground closely. Its flexibility allows residue to flow and easily raises or lowers to conform to various soil and residue conditions.
- Swept Back Reel Design - Allows for better residue and rock clearance.
- Articulating Ball Hitch - New articulating ball hitch for folding models provides a close fit with the hitch pin, reducing fatigue on the tractor draw-bar and implement hitch
- Maintenance Free Walking Tandem Axle on Mainframe and Wing
- Spring Cushion Level Lift to Absorb Shock
- Single Point Depth Stop
- GBGI - Low maintenance sealed cast hub style bearing for increased durability
- Sealed Service-Free Trunnion Bearing with 1 3/4" round center shaft.
- UHMW 6mm Standard Axle Bearing
Incite - Universal Tillage Specs & Compare
| Model Number | Cuttin Width | Approx. Weight (lbs) | Transport Height | Transport Width | Approx. HP Required | Acres/hr @ 6-9mph |
|---|---|---|---|---|---|---|
| IC 5112 | 12' 5" | 10,100 | N/A | 13' 9" | 100-150 | 7-11 |
| IC 5114 | 13' 6" | 10,700 | N/A | 14' 10" | 120-180 | 8-12 |
| IC 5120 | 20' 5" | 17,320 | 10' 6" | 13' 8" | 163-245 | 15-20 |
| IC5124 | 23' 5" | 18,500 | 12' 0" | 13' 8" | 188-282 | 15-22 |
| IC5127 | 26' 6" | 20,920 | 11' 5" | 15' 7" | 212-318 | 16-24 |
| IC 5132 | 32' 1" | 25,220 | 13' 6" | 15' 7" | 256-384 | 19-29 |
| IC 5140 | 39' 7" | 30,730 | 11' 7" | 18' 8" | 320-408 | 24-36 |
| IC 5151 | 51' 3" | 40,500 | 14' 8" | 19' 2" | 408-602 | 31-46 |
| Double Rolling Basket | ||||||
| IC 5112-DRB | 12' 5" | 9,830 | N/A | 13' 9" | 100-150 | 7-11 |
| IC 5114-DRB | 13' 6" | 10,548 | N/A | 14' 10" | 120-180 | 8-12 |
| IC 5120-DRB | 20' 5" | 16,836 | 10' 6" | 13' 8" | 163-245 | 15-20 |
| IC 5124-DRB | 23' 5" | 19,313 | 12' 0" | 13' 8" | 188-282 | 15-22 |
| IC 5127-DRB | 26' 6" | 20,580 | 11' 5" | 15' 7" | 212-318 | 16-24 |
| IC 5132-DRB | 32' 1" | 24,552 | 13' 6" | 15' 7" | 256-384 | 19-29 |
| IC 5140-DRB | 39' 7" | 30,202 | 11' 7" | 18' 8" | 320-408 | 24-36 |
| IC 5151-DRB | 51' 3" | 39,867 | 14' 8" | 19' 2" | 410-602 | 31-46 |
| 5 Bar Harrow | ||||||
| IC 5112-5FA | 12' 5" | 10,100 | N/A | 13' 9" | 100-150 | 7-11 |
| IC 5114-5FA | 13' 6" | 10,700 | N/A | 14' 10" | 120-180 | 8-12 |
| IC 5120-5FA | 20' 5" | 17,320 | 10' 6" | 13' 8" | 163-245 | 15-20 |
| IC 5124-5FA | 23' 5" | 18,500 | 12' 0" | 13' 8" | 188-282 | 15-22 |
| IC 5127-5FA | 26' 6" | 20,920 | 11' 5" | 15' 7" | 212-318 | 16-24 |
| IC 5132-5FA | 32' 1" | 25,220 | 13' 6" | 15' 7" | 256-384 | 19-29 |
| IC 5140-5FA | 39' 7" | 30,730 | 11' 7" | 18' 8" | 320-408 | 24-36 |
| IC 5151-5FA | 51' 3" | 40,500 | 14' 8" | 19' 2" | 410-602 | 31-46 |
| 3 Bar Harrow w/Double Rolling Basket | ||||||
| IC 5112-3FADRB | 12' 5" | 10,156 | N/A | 13' 9" | 100-150 | 7-11 |
| IC 5114-3FADRB | 13' 6" | 10,890 | N/A | 14' 10" | 120-180 | 8-12 |
| IC 5120-3FADRB | 20' 5" | 17,376 | 10' 6" | 13' 8" | 163-245 | 15-20 |
| IC 5124-3FADRB | 23' 5" | 19,917 | 12' 0" | 13' 8" | 188-282 | 15-22 |
| IC 5127-3FADRB | 26' 6" | 21,232 | 11' 5" | 15' 7" | 212-318 | 16-24 |
| IC 5132-3FADRB | 32' 1" | 23,386 | 13' 6" | 15' 7" | 256-384 | 19-29 |
| Spur-Till with Single Rolling Basket | ||||||
| IC-5112-ST | 12'-5 | 10,100 lbs. | 13' 9" | 100-150 | 7-11 | |
| IC-5114-ST | 13'-6" | 10,700 lbs. | 14' 10" | 120-180 | 8-12 | |
| IC-5120-ST | 20'-5" | 17,320 lbs. | 10'-6" | 13' 8" | 163-245 | 15-20 |
| IC-5124-ST | 23'-5" | 18,500 lbs. | 12'-0" | 13' 8" | 188-282 | 15-22 |
| IC-5127-ST | 26'-6" | 20,920 lbs. | 11’-5" | 15' 7" | 212-318 | 16-24 |
| IC-5132-ST | 32'-1" | 25,220 lbs. | 13'-6" | 15' 7" | 256-384 | 19-29 |
| IC-5140-ST | 39'-7" | 30,730 lbs. | 11'-7" | 18'-8" | 320-408 | 24-36 |
