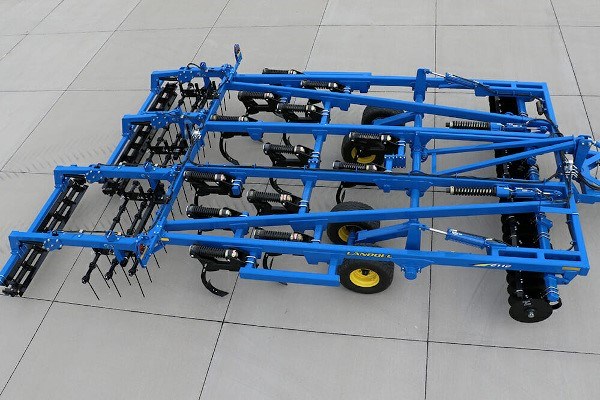

Manage heavy residue conditions at higher speeds with maximum efficiency with the Landoll 2100 Coulter Chisel.
  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 2132-25

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 2132-25

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 2132-25

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

2132-25 Features & Benefits

Size Heavy Residue and Eliminate Compaction

  • 22” Coulters on 7 ½” Spacing with Depth Gauge Indicator
  • 1 ¾” Gang Bolt
  • 5 ¾” Solid Cast Spools
  • C-Cushion Bearing Standards with Trunnion Bearings with Triple Lip Seal
  • Scraper Mounted Bracket Attached to C-Cushion Bearing Standard
  • Auto-Reset Shank Assemblies with 1,750 lb. Point Load, 14” Trip Height, 32” Under Frame Clearance, Adjustable 50 or 60 Degree Point Angle
  • Rigid Shear Bolt Shanks with 32” Under Frame Clearance
  • Choice of Twisted Shovels or Straight Points
  • 5 ½” Lift Axles with Maintenance Free Lift System
  • Walking Tandems with Greaseable Bearings on all Sizes
  • 340/65R x 18 Radial Tires with 8-Bolt Hubs and 3” Slip-In Spindles on Rigid Models and Wings of Folding Units
  • 400/60R x 18 Radial Tires with 8-Bolt Hubs and 3 ¼” Slip-In Spindles on Center Sections of Folding Units
  • Self-Leveling Hitch with Manual Adjustment
  • Single Point, Front Mounted Depth Control
  • Adjustment and Gang Wrench
  • Sapphire Blue Powder Coat Paint

2132-25 Specs & Compare

Product Attributes 2132-25
Approximate Weight 32,290 lbs. (16,646 kg)
Working Width 31 ft. 3 in. (9.5 m)
Transport Width 15 ft. 6 in. (4.7 m)
Transport Height 15 ft. 2 in. (4.6 m)
Number of Coulter Blades 51
Blade Spacing 7.5 in. (191 mm)
Blade Size 22 in. x 0.25 in. (559 x 6.4 mm)
Coulter Protection Spring Cushioned/C-Flex
Blade Scrapers Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm)
Blade Scraper Mount C-Cushion Mounted
Gang Spools 5.75 in. (146 mm) Diameter Solid Cast
Gang Shaft 1.75 in. (44.5 mm) Round
Number of Bearings 12
Gang Bearing Type C-Cushion Trunnion Mount, Greaseable Triple Lip Seals
Number of Shanks 25
Shank Type Auto-Reset
Shank Spacing 15 in. (381 mm)
Shank Mounts Wrap-Around Design
Shank Arms 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm)
Point Load - Auto Reset 1,750 lbs. (794 kg)
Trip Height 14 in. (356 mm)
Shank Size 1.25 in. x 2.5 in. (31.8 x 63.5 mm)
Standard Shovels 4 in. (102 mm) Twisted
Point Angle 50 or 60 Degree
Shank Offset 12 in. (305 mm) on Rear Bar
Under Frame Clearance 32 in. (813 mm)
Frame 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm)
Frame Construction Laser Cut/Matchcut Components, Robotically Welded
Transport Lift Axles 5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Transport Axle Type Walking Tandems with Greaseable Pivots
Tire Size - Main Frame (4) 400/60R x 18 Radial Tires
Wheel Hubs - Main Frame 8-Bolt
Spindles - Main Frame 3.25 in. (83 mm) Slip-In Spindles
Tire Size - Wing Frame (4) 340/65R x 18 Radial Tires
Wheel Hubs - Wing Frame 8-Bolt
Spindles - Wing Frame 3 in. (76.2 mm) Slip-In Spindles
Hitch Type Self-Leveling with Manual Adjustment
Hitch Category Cat. IV Ball, Single Lip with 2 in. (50.8 mm) Hole
Machine Depth Control Single Point, Front Mounted
Weight Kits Needed With Attachment - 3 Required
Safety Warning Lights and SMV Emblem Standard
Safety Chain Kit Standard
Adjustment Wrenches Standard
Powder Coat Paint, Blue Sapphire Standard
Cat. III Single Lip Hitch Clevis N/A
Cat. IV Single Lip Hitch Clevis Standard
Cat. V Single Lip Hitch Clevis Optional
2 in. Straight Points Optional
3 in. Twisted Shovels Optional
Rear Hitch Optional
Rear Hitch With Hydraulic Hoses Optional
Spare Tire & Wheel Assembly Optional
Horsepower Requirements 20 to 30 HP (15 to 22 kW) per Shank
