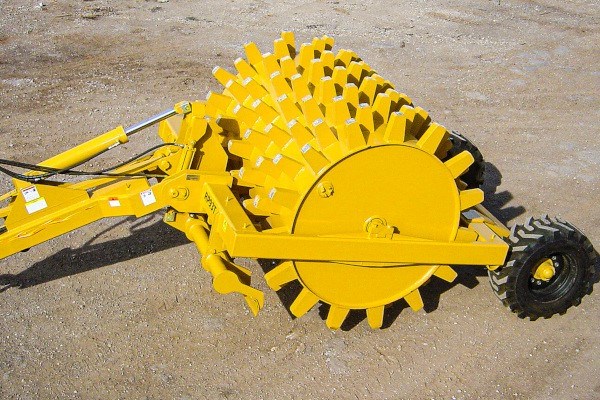

Landoll 93x60
CONSTRUCTION GRADE
All drum shells are ½” thick. Fill plugs are standard on all drums. The heavy-duty design allows for tandem operation. Rear hitches are standard equipment. The hitches are equipped with both a single or double lip swivel. The 93×60 model is available with a hydraulic transport that uses 15L x 19.5 tires.
Shopping Tools
93x60 Features & Benefits
- Overall Packing Widths Range from 93” to 102”
- Side by Side 2 Drum Design
- Independent Flexible Frame for Each Drum
- Drum/Tooth Cleaners
- ½” Thick Drum Shell
- Rear Hitch for Tandem Operation
- Single or Double Swivel Hitch
- Hydraulic Transport Available on Model 93×60
- Model 93×60 can be Equipped with Optional Smooth Drum
93x60 Specs & Compare
| Product Attributes | 93x60 |
| Approximate Weight (Empty) | 13,680 lbs. (6,205 kg) |
| Working Width | 7 ft. 9 in. (2.4 m) |
| Transport Width | 8 ft. 5 in. (2.6 m) |
| Transport Clearance | 12 in. (305 mm) |
| Overall Length | 18 ft. 8 in. (5.7 m) |
| Number of Drums | 1 |
| Length of Each Drum | 93 in. (2.4 m) |
| Drum Diameter - Without Teeth | 60 in. (1.5 m) |
| Drum Diameter - With Teeth | 78 in. (2.0 m) |
| Tooth Size | 9 in. x 3 in. (229 x 76 mm) |
| Number of Teeth on Ground | 6 |
| Number of Teeth per Drum | 165 |
| Total Number of Teeth | 165 |
| Total Drum Capacity | 1,090 gal. (4,126 l) |
| Weight, Filled with Water | 22,618 lbs. (10,259 kg) |
| Weight, Filled with Wet Sand | 30,820 lbs. (13,980 kg) |
| Pressure per Square Inch, Empty | 259 |
| Pressure per Square Inch, Water Filled | 418 |
| Bearing Surface | 9 in. (229 mm) |
| Hitch | Pintle 360° Swivel Hitch |
| Transport Tires | (2) 19.5 x 15 |
| Smooth Drum | Optional |
| Safety Chain Kit | Standard |
