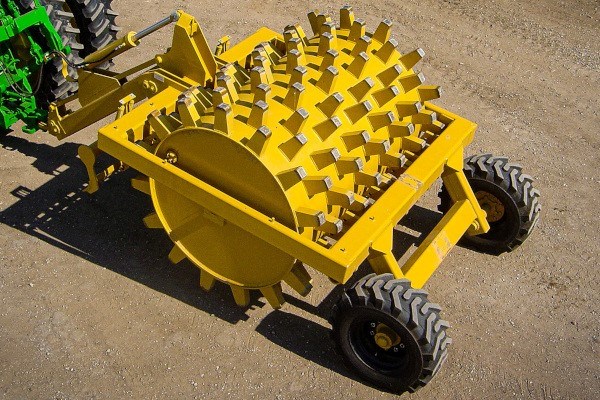

Landoll 48x48
CONSTRUCTION GRADE
All drum shells are ½” thick. Fill plugs are standard on all drums. The heavy-duty design allows for tandem operation. Rear hitches are standard equipment. The hitches are equipped with both a single or double lip swivel. The 93×60 model is available with a hydraulic transport that uses 15L x 19.5 tires.
Shopping Tools
48x48 Features & Benefits
- Overall Packing Widths Range from 93” to 102”
- Side by Side 2 Drum Design
- Independent Flexible Frame for Each Drum
- Drum/Tooth Cleaners
- ½” Thick Drum Shell
- Rear Hitch for Tandem Operation
- Single or Double Swivel Hitch
- Hydraulic Transport Available on Model 93×60
- Model 93×60 can be Equipped with Optional Smooth Drum
48x48 Specs & Compare
| Product Attributes | 48x48 |
| Approximate Weight (Empty) | 10,880 lbs. (4,935 kg) |
| Working Width | 8 ft. 6 in. (2.6 m) |
| Transport Width | 10 ft. 0 in. (3.0 m) |
| Transport Clearance | N/A |
| Overall Length | 13 ft. 10 in. (4.2 m) |
| Number of Drums | 2 |
| Length of Each Drum | 48 in. (1.2 m) |
| Drum Diameter - Without Teeth | 48 in. (1.2 m) |
| Drum Diameter - With Teeth | 62 in. (1.6 m) |
| Tooth Size | 7 in. x 2.5 in. (178 x 64 mm) |
| Number of Teeth on Ground | 6 |
| Number of Teeth per Drum | 72 |
| Total Number of Teeth | 144 |
| Total Drum Capacity | 752 gal. (2,846 l) |
| Weight, Filled with Water | 17,046 lbs. (7,732 kg) |
| Weight, Filled with Wet Sand | 22,987 lbs. (10,427 kg) |
| Pressure per Square Inch, Empty | 201 |
| Pressure per Square Inch, Water Filled | 315 |
| Bearing Surface | 9 in. (229 mm) |
| Hitch | Pintle 360° Swivel Hitch |
| Transport Tires | N/A |
| Smooth Drum | N/A |
| Safety Chain Kit | Standard |
