Landoll 1632

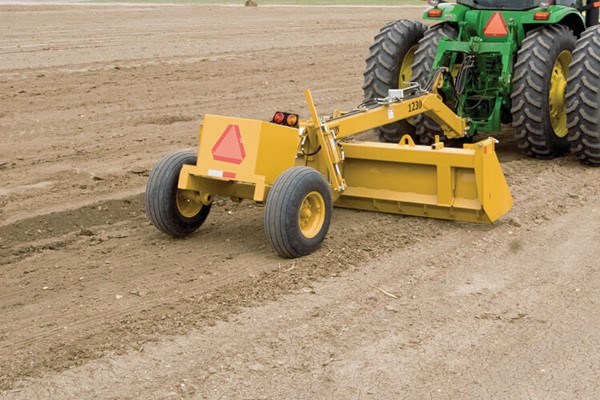

Clean ditches, rebuild terraces, grade roads, move snow, dig irrigation ditches, level fields and scrape feedlots all with the ICON Pull-Type Grader line-up
Shopping Tools
1632 Features & Benefits
- Three-Way Hydraulic Operation to Raise/Lower, Tilt, and Angle
- Integral Break-A-Way Valve on Blade for Unit Protection: 12’ – 2,500 lbs.; 16’ – 3,100 lbs.
- Fold Down Box Ends on Blade
- 12.5L x 15-12 Ply Tires on 1230
- 19L x 16.1 Tires on 1432 & 1632
- Models 1432RS & 1632RS Available with Rear Steering (Requires Additional Remote Circuit)
- Pintle Swivel Hitch
- Yellow Industrial Paint
- Safety Warning Lights
1632 Specs & Compare
| Product Attributes | 1632 |
| Approximate Weight (With Empty Weight Box) | 5,300 lbs. (2,404 kg) |
| Working Width | 16 ft. 0 in. (4.9 m) |
| Transport Width | 11 ft. 0 in. (3.4 m) |
| Transport Width (Narrow) | 8 ft. 6 in. (2.6 m) |
| Transport Length | 23 ft. 0 in. (7.0 m) |
| Transport Clearance | 18 in. (457 mm) |
| Blade Size | 16 ft x 32 in. (4.9 m x 813 mm) |
| Cutting Edge | 6 in. (152 mm) Hardened Steel |
| Hitch | Pintle Swivel Hitch |
| Tire Size | 19L x 16.1-12 Ply |
| Spindle Size | 3 in. (76 mm) |
| Wheel Hubs | 8-Bolt, 8,000 lbs. (3,629 kg) |
| Hydraulic Circuits Required | 3 |
| Blade Swing Cylinder | (2) 5 in. x 24 in. (127 x 610 mm) |
| Tilt Cylinder | (1) 4 in. x 12 in. (102 x 305 mm) |
| Raise/Lower Cylinder | (1) 4 in. x 16 in. (102 x 406 mm) |
| Rear Steer Cylinder | N/A |
| Weight Box | 0.6 yd Concrete |
| Snow/Dirt Skid | Standard |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Horsepower Requirements | 10 to 20 HP (8 to 15 kW) per Foot |
