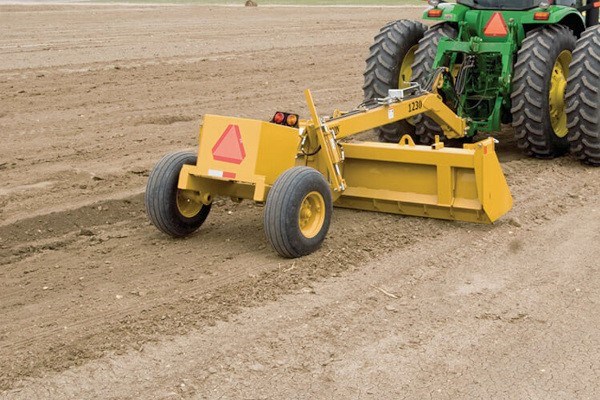

Clean ditches, rebuild terraces, grade roads, move snow, dig irrigation ditches, level fields and scrape feedlots all with the ICON Pull-Type Grader line-up

  • Get a Quote CALL US TODAY Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 1230

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 1230

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 1230

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

1230 Features & Benefits

  • Three-Way Hydraulic Operation to Raise/Lower, Tilt, and Angle
  • Integral Break-A-Way Valve on Blade for Unit Protection: 12’ – 2,500 lbs.; 16’ – 3,100 lbs.
  • Fold Down Box Ends on Blade
  • 12.5L x 15-12 Ply Tires on 1230
  • 19L x 16.1 Tires on 1432 & 1632
  • Models 1432RS & 1632RS Available with Rear Steering (Requires Additional Remote Circuit)
  • Pintle Swivel Hitch
  • Yellow Industrial Paint
  • Safety Warning Lights

1230 Specs & Compare

Product Attributes1230
Approximate Weight (With Empty Weight Box)3,280 lbs. (1,488 kg)
Working Width12 ft. 0 in. (3.7 m)
Transport Width9 ft. 6 in. (2.9 m)
Transport Width (Narrow)8 ft. 0 in. (2.4 m)
Transport Length18 ft. 2 in. (5.5 m)
Transport Clearance18 in. (457 mm)
Blade Size12 ft. x 30 in.(3.7 m x 762 mm)
Cutting Edge6 in. (152 mm) Hardened Steel
HitchPintle Swivel Hitch
Tire Size320/70R x 15 Radial Tires
Spindle Size2.25 in. (57 mm)
Wheel Hubs8-Bolt, 4,500 lbs. (2,041 kg)
Hydraulic Circuits Required3
Blade Swing Cylinder(1) 4 in. x 24 in. (102 x 610 mm)
Tilt Cylinder(1) 3 in. x 8 in.(76 x 203 mm)
Raise/Lower Cylinder(1) 3 in. x 12 in.(73 x 305 mm)
Rear Steer CylinderN/A
Weight Box0.5 yd Concrete
Snow/Dirt SkidStandard
Safety Warning Lights & SMV EmblemStandard
Safety Chain KitStandard
Horsepower Requirements10 to 20 HP (8 to 15 kW) per Foot
