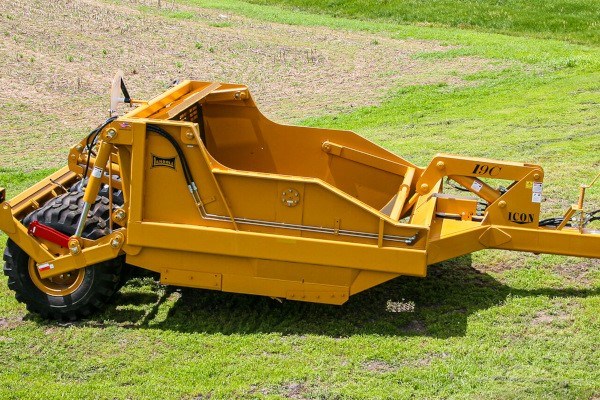

Landoll 19C
EARTHMOVING AT ITS BEST
Handle varying soil conditions and get the job done faster for less money with the ICON C Series Pull-Type Scrapers.
Shopping Tools
19C Features & Benefits
- 17 or 19 Yard Heaped Capacity
- Fixed Hinge Bit
- Rear Eject Wall
- Cast Hitch with 360 Degree Swivel for Flexibility and Roll-Over Protection
- Quick Hitch for One Man Hook-Up and Disconnect
- 18” Ground Clearance
- Replaceable Cutting Edges
- Fully Assembled at the Factory
- Optional Tandem Hitch Package
- Optional Hydraulic Disc Brakes
- Optional Auxiliary Drawbar
- Yellow Industrial Paint
- Safety Warning Lights
19C Specs & Compare
| Product Attributes | 19C |
| Approximate Weight | 23,900 lbs. (10,841 kg) |
| Working Width | 11 ft. 0 in. (3.4 m) |
| Capacity - Heaped | 19 yards (14.5 m3) |
| Capacity - Struck | 16.9 yards (12.9 m3) |
| Transport Width | 11 ft. 11 in. (3.6 m) |
| Transport Height | 8 ft. 10 in. (2.7 m) |
| Height With Bowl on Ground | 7 ft. 4 in. (2.2 m) |
| Transport Clearance | 18 in. (457 mm) |
| Overall Length | 27 ft. 6 in. (8.4 m) |
| Cutting Edge | CAT, Replaceable |
| Style | Push-Off Wall Eject -- Rear Lowering |
| Hitch Cast | 360° Swivel |
| Tire Size | (4) 20.5 x 25 |
| Wheel Hubs | 10-Bolt, 25,000 lbs. (11,340 kg) |
| Depth Gauge | Standard |
| Complete Factory Assembly | Standard |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Auxiliary Draw Bar | Optional |
| Tandem Package | Optional |
| Hydraulic Disc Brakes | N/A |
