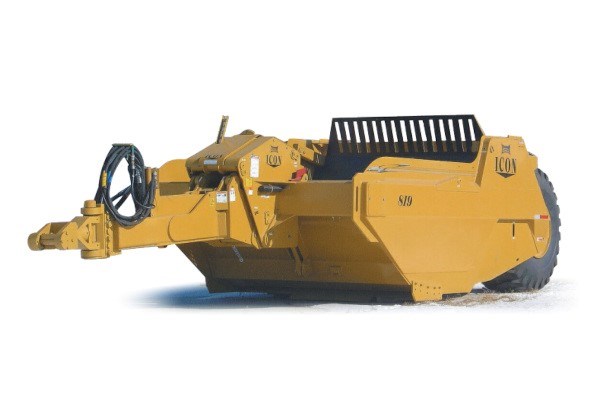

Landoll 819

USER FRIENDLY
Operator friendly controls use 2-valve sequencing hydraulics for efficient operation. Tandem capability with a quick hitch on the lead scraper allows for one man mount/dismount. Cab mounted controls with digital readout for precise reference to bowl and gate settings are standard. A large push block is standard on all 800 Series scrapers. The front gate and eject wall are finished in dirt-rejecting epoxy. Feature for feature, the ICON 800 Series Scrapers are serious about earthmoving.

Get a Quote CALL US TODAY Value Your Trade
Send to a Friend
Payment Calculator

Get information on the 819

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Title

Name*

Email*

Phone*

Comments*

Send your friend information on the 819

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Requesting Trade In on 819

Contact Information

Equipment Interested In

Trade Information

Request A Demo

Fields with asterisks* are required.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools

Contact Salesman

Request Demo

Apply for Financing

Features
Specifications

819 Features & Benefits

9 or 21 Yard Heaped Capacity
Front Lowering Unit
Patented Swing Wall Eject System
18” Hydraulic Disc Brakes
Double Wall Design for Added Strength (80,000 Yield T-1 Steel Material)
Cast 360 Degree Swivel Hitch Rated for 600 HP
Quick Hitch Allows for Easy One Man Hook-Up and Disconnect
In-Cab Monitor to Gauge Depth and Gate Position
18” Ground Clearance
4,000 PSI Rated Hoses
29.5 Tires on 819
20.5 Tires and 23.5 Tires on 821
Offset Tire Arrangement for Weight Distribution Between Loading and Hauling
3 1/4” Axles with Individual Axle Housings
Optional Tandem Hitch Package
Optional Quick Attach Tractor Drawbar
Yellow Industrial Paint
Safety Warning Lights

819 Specs & Compare

Product Attributes	819
Approximate Weight	28,000 lbs. (12,701 kg)
Working Width	10 ft. 0 in. (3.0 m)
Capacity - Heaped	19 yards (14.5 m3)
Capacity - Struck	17.3 yards (13.2 m3)
Transport Width	10 ft. 11. in. (3.3 m)
Transport Height	9 ft. 1 in. (2.8 m)
Height With Bowl on Ground	7 ft. 7 in. (2.3 m)
Transport Clearance	18 in. (457 mm)
Overall Length	28 ft. 3 in. (8.6 m)
Cutting Edge	CAT, Replaceable
Style	Push-Off Wall Eject -- Front Lowering
Hitch	Cast 360° Swivel
Tire Size	(2) 29.5 x 25
Wheel Hubs	20-Bolt, 48,500 lbs. (22,000 kg)
Depth Gauge	Standard & In-Cab Monitor
Complete Factory Assembly	Standard
Safety Warning Lights & SMV Emblem	Standard
Safety Chain Kit	Standard
Auxiliary Drawbar	Optional
Tandem Package	Optional
Hydraulic Disc Brakes	Optional
