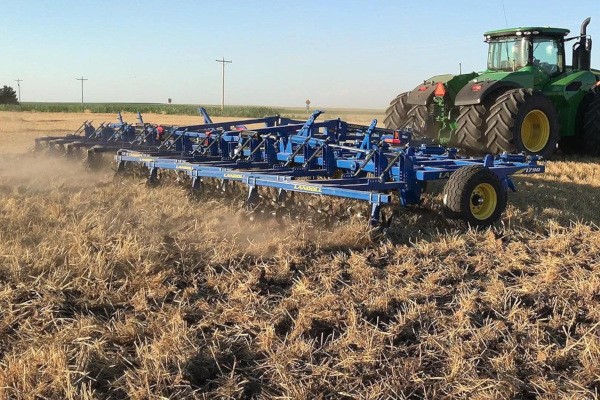

The 1700 Series Blade Plow from Landoll, built tough to last and designed with user-friendly adjustments for leveling, offers superior weed control for dryland farming operations.
  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 1760-35

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 1760-35

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 1760-35

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

1760-35 Features & Benefits

  • 4” x 4” x 3/8” Outer Center Frames and Rear Tubes to Handle Raised Treaders
  • 4″ x 4” x 5/16” Wing Hinge Tubes
  • 5” x 4” x 3/8” Front Frame Tubes
  • 3 Hinges on Each Frame
  • Spanner Beam Allows All Sections to Flex Side to Side Independently of One Another
  • 320/70R x 15 Radial Tires on 6 Section Units
  • 380/55R x 16.5 Radial Tires on 7 and 9 Section Units
  • 480/45R x 17 and 380/55R x 16.5 Radial Tires on 11 Section Units
  • 8-Bolt Hubs and 3” Slip-In Spindles in All Locations for Easier Leveling
  • 20-25% More Load Capacity Than Competitive Models
  • 5 ½” Lift Axles With Maintenance Free Lift System
  • Cylinders With Adjustable Anchors for Perfect Leveling and Shallow Working Depths
  • Cylinders Located Above Frame for Ease of Adjustment
  • Precision Leveling of Plow Allows Shallower Depth of Operation
  • 10” Road Clearance
  • Positive Hitch Weight With Treaders Installed
  • Hitch Aids in Penetrating Hard Ground Conditions
  • Adjustable 22” Smooth Coulters With 5-Bolt Hubs
  • 6’ Cutting Blades With Top Hard Faced
  • 5” Overlap With New Blades
  • 16” Between Front and Rear Blades
  • 26” Under Frame Clearance
  • Working Depth Range of 2” to 6”
  • Optional Rolling Treaders
  • 20” Diameter Treader With 7 Teeth per Wheel Positioned on 7” Centers
  • 5” of Hard Surfacing per Tooth
  • Large Tooth Design Provides Additional Tooth Strength and More Weed Killing Action
  • Over Center Frame Hitch Controls Front to Rear Rotational Forces Keeping Plow Level
  • Single Lip Cat. IV Hitch With Ball and 2” Diameter Hole
  • Optional Spare Tire With Mount
  • Optional Rear Tow Hitch
  • Single-Point Depth Control
  • Adjustment Wrench
  • Blue Powder Coat Paint
  • Safety Warning Lights

1760-35 Specs & Compare

Model 1760-35
Approximate Weight 12,210 lbs. (5,540 kg)
Working Width 35 ft. 0 in. (10.7 m)
Transport Width 19 ft. 6 in. (6.0 m)
Transport Height 14 ft. 8 in. (4.5 m)
Road Clearance 10 in. (254 mm)
Number of Sections 6
Coulter Blade Size 22 in. (610 mm) Smooth Coulters w/ 5 Bolt Hubs
Sweeps 6 ft. (1.8 m) x 75 Degree; Top Hard Faced
Operating Depth Range 2 in. to 6 in. (51 mm to 152 mm)
Under Frame Clearance 26 in. (660 mm)
Frame 4 in. x 4 in. x 0.375 in. (101 x 101 x 10 mm) Main Frame;
4 in. x 4 in. x 0.3125 in. (101 x 101 x 8 mm) Wing Hinge;
5 in. x 4 in. x 0.375 in. (127 x 101 x 10 mm) Front Frame
Frame Construction Laser Cut/Matchcut Components, Robotically Welded
Transport Lift Axles 5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Tire Size (7) 380/55R x 16.5 Radial Tires
Wheel Hubs 8-Bolt
Spindles 3 in. (76.2 mm) Slip-In Spindles
Hitch Type Self-Leveling Over Center Frame Hitch
Hitch Category Cat. IV Single Lip Hitch Clevis w/Ball (2.0 in. Hole)
Machine Depth Control Cylinders with Adjustable Anchors
LED Warning Lights & SMV Emblem Standard
Safety Chain Kit Standard
Adjustment Wrench Standard
Powder Coat Paint, Blue Sapphire Standard
Spare Tire and Wheel Assembly Optional
Cat. V Single Lip Hitch Clevis w/Ball (2.75 in. Hole) Optional
Rear Tow Hitch With Hydraulic Hoses Optional
Rolling Treader Package Optional
Treader Specifications 20 in. (508 mm) Diameter;
7 Teeth (0.375 in. x 1.75 in. x 11 in.);
5" Hard Surfacing per Tooth
Number of Arms 1 Per Section
Treader Protection Adjustable Spring Loaded Down Pressure
Treader Bearings Greaseable Flanged Bearing
Hydraulic Treader Lift Optional
Horsepower Requirements 40 HP (30 kW) per Section
Specifications subject to change with or without notice.
