Features
| FEATURES | BENEFITS |
| Skid steer mounting plate. | Fits most/all skid steer front loader hitches. |
| 40-95 hp requirements. | Makes it compatible with many popular smaller sized skid steers and tractors in use today. |
| Dual adjustable height grader blades. | Allows the grader to be adjusted to desired amount of cultivation, leveling, and grading action. |
| 3-Position scarifier shanks. | Allows shanks to be adjusted to two depths or above ground. |
| Ripping-Only Functionality | Frame geometry gives the user the option to solely use straight shanks, reducing horsepower requirements when the surface requires multiple ripping passes. |
| Reversible heat treated high carbon steel grading blades. | For excellent wear resistance and long service life. |
| Hardened straight shanks. | Assures long service life. |
| Full length heavy duty skid shoes. | Makes for easier operation and long unit life. |
| Replaceable and reversible skid shoes. | Extends the life of the skid shoes. |
| Heavy duty frame construction. | Assures long lasting reliability and performance. |
Specs

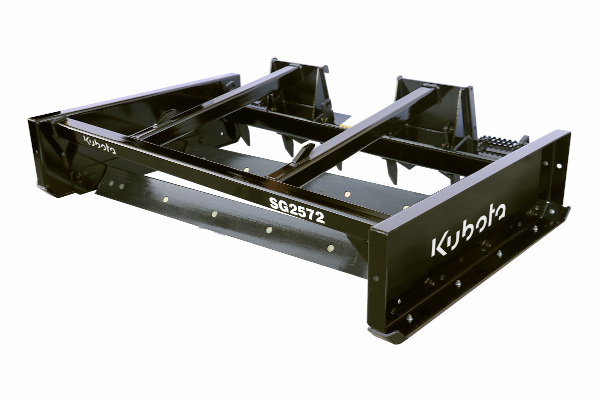

| Model | AP-SG2572 |
| Working width in (m) | 72 (1.83) |
| Overall width in (m) | 81 1/4 (2.06) |
| Number of straight shanks | 6 |
| Skid steer & tractor hp requirement hp (kW) | 40-95 (29.8-70.8) |
| Unit weight with shanks lbs (kg) | 886 (401.9) |
| Overall length in (m) | 52 1/4 (1.33) |
| Overall height in (m) | 22 (55.9) |
| Side panel height with skid shoes in (m) | 15 1/2 (39.4) |
| Side panel length in (m) | 50 (1.27) |
| Side panel thickness in (m) | 1/4 (6) Thick with 2 3/4 (70) formed edges. |
| Skid shoe construction in (m) | 3/8 (10) Thick with a formed bevel to prevent gouging. |
| Straight shank construction in (m) | Heat-treated 3-position shank. |
| Cutting edges in (m) | Four 1/2 x 6 (1.3 x 15.2) high-carbon, heat-treated blades that are reversible and replaceable. |
| Cutting edge adjustment in (m) | Variable vertical adjustment from level grade to 1 1/2 (3.8) below grade. |
| Shank adjustments in (m) | 2 1/2 (64) and 3/4 (19) below grade level. 3/4 (19) above grade level. |
| Hitch type | Skid steer mounting plate |
