Features
| FEATURES | BENEFITS |
| RB16 Working Widths (60", 72", 84") | Choice of three sizes per Series to pick from. |
| 20-40 HP rating for RB16 Series | RB16 Series fits a wide variety of small tractors between 20 & 40 HP. |
| Blade angles left and right up to 45° in forward position and 30° in reverse position | (7 Forward positions in 15° increments and 3 reverse positions in 30° increments) Many angles for diverse jobs and results. |
| Blade offsets left or right 12" | Manually move moldboard to cover either tractor tire. |
| Blade tilts up or down up to 15 degree | (5 positions: Center, 2 clockwise, and 2 counterclockwise) Allows operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches. |
| Formed rolled moldboard RB16 Series (14" High Moldboard) |
Rolled moldboard allows material to flow easily, which means less drag, less HP. 14" High moldboard for good capacity. |
| Reversible cutting edge | For twice the life. |
| Parking stand | Store unit with front of hitch off the ground, allows for easier hook-up. |
| End Plates (accessory) | End plates hold material in to be moved. |
| Skid shoes (accessory) | Help protect from hitting low obstructions by keeping the cutting edge off the ground. Set skid shoes to clear obstructions like manhole covers and street cracks. |
| Rake Assembly (Accessory) | The blade assembly can be removed from the main frame and a rake assembly attached to give the Land Pride Rear Blade versatility. |
| Hydraulic Angling (accessory) | Makes rotating blade angle horizontally easy with infinite number of angles available between 0 degrees and 45 degrees clockwise and counterclockwise. |
Specs

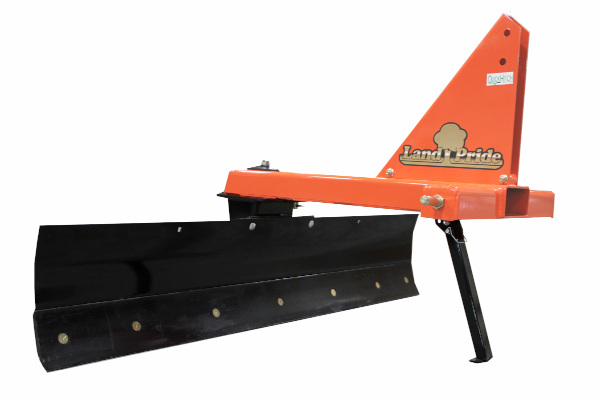

| Model Number | RB1660 |
| Blade Width | 60" |
| Approximate Weight (lbs.) | 283 LBS |
| Horsepower Rating | 20-14 hp |
| Moldboard Height | 14" |
| Moldboard Thickness | 1/4" |
| Hitch Type | Cat. l Fits Land Pride Quick Hitch |
| Blade Angle | 7 Forward positions up to 45°Clockwise & Counterclockwise 3 Reverse up to 30° Clockwise & Counterclockwise, |
| Blade Offset | 12" left or right |
| Blade Tilt | 5 Positions; Maximum 15° up and 15°down in 7 1/2 degree increments |
| Cutting Edge | 1/2" x 6" Heat treated; Replaceable & Reversible (Double bevel) |
| Parking Stand | Folding |
| Accessories | Skid shoes Rake Assemblies: Available in 60", 72", 84", & 96" working widths Hydraulic Angling |
