Features
- Bolted steel frame: Easy to replace individual components.
- Adjustable 3-point Cat. I hitch: Can adjust leading plow share to operate next to the furrow on many different tractors.
- Replaceable wear components: High wear components (plow share, shim, moldboard, landslide, and optional coulter can be individually replaced as they wear to help keep maintenance cost down.
- Shearbolt protected plow bottoms: Protects structural integrity of each plow bottom.

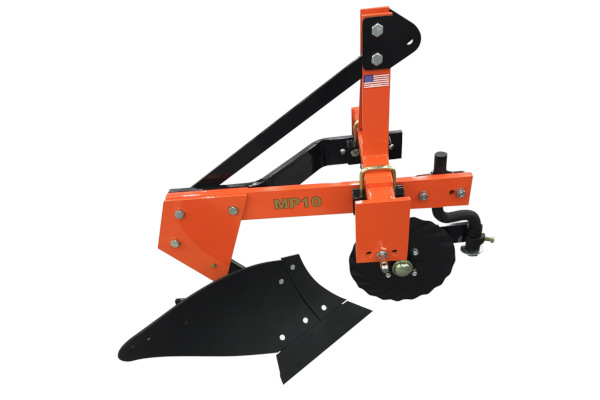

- Park jack with MP10 model: Single bottom plow won’t fall over.
- 14" coulters (Optional): Breaks ground ahead of the moldboard so that the plow can pull easier and cuts trash to help keep trash from wrapping around and building-up on the plow shank.
- MP top link extension (accessory): Allows greater range of adjustment for tractors with short top links.
Specs
| Model | MP20 |
| Horsepower | 2 Wheel drive: 20 to 60 hp 4 Wheel drive: 20 to 50 hp. |
| Weight with coulters without coulters |
582 lbs 498 lbs |
| Hitch type | 3-point Cat. I |
| Construction | 1" x 4" Bolted steel frame |
| Park Jack | No |
| Number of bottoms | (2) - 14" Bottoms |
| Cutting width | 27 1/2" |
| Working depth | Max. 7" (depending on soil conditions) |
| Plow shank shear bolt | 7/16"-14 x 3" GR8 share bolt |
| Plow share material | Forged steel |
| Moldboard & Shin Thickness | 5/16" |
| Frog & Landslide Thickness | 1/2" |
| Replaceable wear components | 2 ea. - Share, shin, moldboard, landslide, and optional coulter |
| Optional - Coulter | 14" Diameter coulter with greasable 1 1/4" roller bearings |
| Accessory - MP Top Link Extension | Yes |
