Features
| FEATURES | BENEFITS |
| 1/2” Heavy Side panels | Thick end panels guard against abrasion. |
| Hydraulic shank tube | Hydraulic shank tube makes for efficient use of time. |
| Clevis-type lower 3-point hitch | Allows for easier hook-up of the tractor’s lower draft arms. |
| 3 Position heat treated spring steel shanks | Positions set for deep to shallow settings. Heat-treated for longevity. |
| Roll-formed moldboard | Roll-formed moldboard keeps materials flowing which puts less drag on the Box Scraper, resulting in lower HP requirements and faster working conditions. |
| Heat treated dimpled on tips | Easy to replace tips that are heat treated for toughness. |
| Heat-treated, reversible and replaceable cutting edges | Heat-treated for hardness. Reversible so both edges can be used before replacing the cutting blades. |
| Hinged rear backfill blade. Fixed or floating | Rear backfill blade can be in float or fixed position. For packed down grade, level grade or rough grade |
| Warranty | One year parts & labor. |
| Category I & II 3-point hitch | Fits a wide variety of tractors. |
| Fits Land Pride Quick Hitch | Quick and easy attaching without leaving tractor seat. |
| Transport lock on shank tube | Heavy-duty shank lock to keep shanks locked into place during transport. |
| Knurled bushings in upper and lower hitch | Work done with retractable box blades is done forwards and backwards. Bushings at hitch points eliminate premature wear. |
| Heavy Shank bumpers | A 3/4” square steel bumper is located behind each shank for additional reinforcement. |
| Accessories | |
| Check Valve | Prevents shanks from drifting down. |
Specs

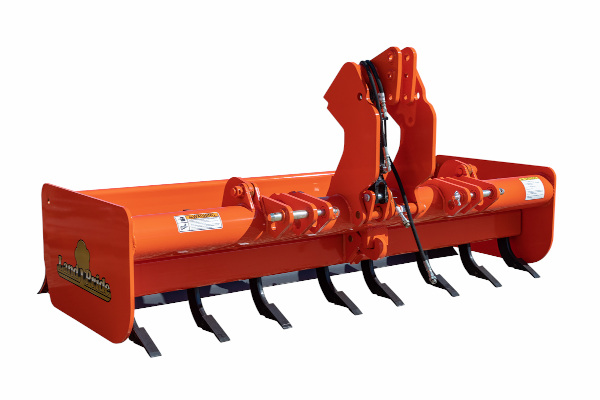

| Model | HRL3578 19" Lowback |
| Working Width | 78" |
| Capacity | 26 cu. ft. |
| Weight | 972 lbs. |
| Weight (with hydraulics) | 981 lbs. |
| Number of Shanks | 8 |
| Shank Material | 3/4" x 2 1/2" heat treated spring steel |
| Shank Penetration | 3- positions (1", 3" & 5" below scraper end plates) |
| Shank Tip Construction | Replaceable heat treated dimpled-on tips |
| Shank Beam | Pivots to lift shanks up; transport lock on shank tube |
| Shank Lift Mechanism | Hydraulic cylinder |
| Moldboard | Roll-formed moldboard - 17" |
| Side Panels | 1/2" thick x 19" high x 30" deep |
| Depth of Bucket | 28" |
| Cutting Blades | 2 ea. 1/2" x 6" high carbon, heat treated cutting edges; reversible and replaceable |
| Maximum H.P. Rating | 65 hp |
| 3-Point hitch construction | Harden bushings in upper and lower hitch points |
| 3-Point Hitch Type | Category l & II (Quick Hitch ready) |
