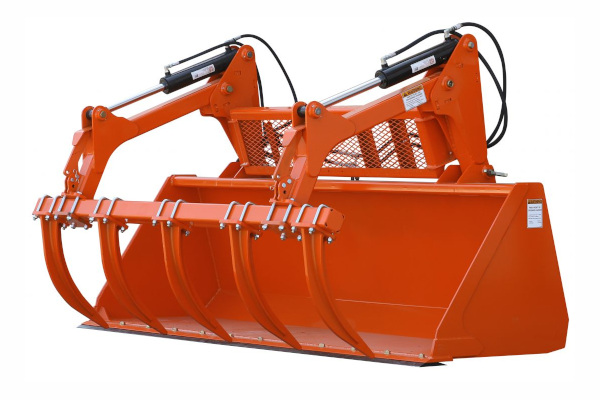

Features
| Bucket | |
| Features | Benefits |
| 3/16" Grade 50 high strength steel shell | Improved strength & wear versus mild steel |
| Five 1/2" x 5" bottom wear plates | Extends bucket life |
| Reinforced bucket corners & side edges | Adds strength & extends bucket life |
| 5/8" x 6" drilled cutting edge | Accepts optional bolt on cutting edge |
| Optional 5/8" x 6" bolt on cutting edge | Reversible and replaceable; extends life of cutting edge |
| Upper torque tube/lower torque channel | Prevents twisting |
| 90", 96" & 108" widths available | Fits wide range of tractors |
| 1.0-1.2 Cu. Yd. struck capacity | Allows high volume material handling |
| Quick release grapple mounts | Allows grapple to be installed/removed quickly |
| Grapple | |
| Features | Benefits |
| High strength cast grapple tines | Stronger and better looking than welded tines |
| Tubular steel construction | Resists twisting |
| Parking stands | Allows grapple to be stored upright when not in use |
| Spill guard | Helps contain loose material |
| Dual 3" 3500psi cylinders | Large cylinders handle high pressure & loads |
| Hose kit included | Hoses provided to center tees or valve |
| Optional lock valve | Prevents hydraulic bleed-off / improves cylinder control |
| Quick release grapple | Four pin mount system |
| Large 84" opening | Handles large bales and high volumes of material |
| Greasable pivot points | Extends grapple life |
Specs
| Model | GB2596 |
| Hitch Style | Universal Quick-Attach |
| Weight (Optional BOE and Valve included) |
1658 lbs. |
| Bucket Capacity (Struck) | 1.07 cu yd |
| Overall Width | 96" |
| Grapple Opening (With BOE) | 84" |
| Number of Tines | 4 |
| Tine Construction | Bolt-on ductile iron tine with reinforced gussets |
| Tine Thickness | 3/4" |
| Hydraulic Cylinder | Dual 3" x 14" x 1 1/2" rod |
| Maximum Pressure Rating | 3500 psi |
