Features
| FEATURES | BENEFITS |
| Formed 10 Ga. mainframe and rotary supports | Formed 10 Ga. plates offers good strength and appearance. |
| Expanded metal in weight tray | Adds safety over spoon area, doesn’t allow foreign weight object to fall into spoon area, keeps cores from being thrown forward. |
| 16 Ga. x 1/2” I.D. harden spring steel spoons with beveled edge | Penetrates the ground easier than spoons constructed of a heavier gauge material and/or larger diameter bodies. |
| Individual Spoon Replacement | Requires removal of only two bolts to replace a worn-out spoon. Don’t have to disassemble the whole rotary section to get to the spoons. |
| 4 1/2” Gang spacing | Offers optimum core pulling pattern. |
| Spoon gangs | Spoon gangs are independent of each other allowing for less side load torque on each gang and tearing of the turf during turns. |
| Spoon gang greasing | Each gang has a grease zerk for smooth rotation. |
| 3 - Storage stands | Keeps the spoons off the ground while in storage and aids in hooking-up to the tractor. |
| 6 3/16’ Spoon spacing – forward travel | Offers optimum aeration. |
| 48” = 4.5 Aeration cores per sq. ft.; 56” = 4.7 Aeration cores per Sq. ft.; 64” = 4.8 Aeration cores per Sq. ft.; 72” = 5.0 Aeration cores per Sq. ft. | Provides good aeration per square foot. |
| Weight tray | Additional weight can be easily added to the aerator. |
Specs

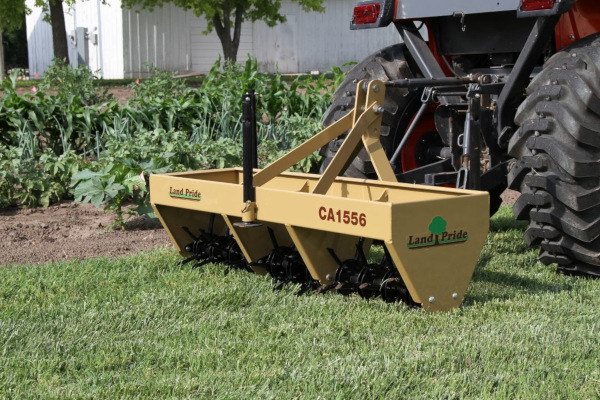

| Model No. | CA1556 |
| Working Width | 50" |
| Overall Width | 56 5/16" |
| Overall Length | 24 7/8" |
| Overall Height (With support stands up) | 31 13/16" |
| Weight | 170 lbs. |
| Max. allowable added weight in Weight Tray |
400 lbs. |
| Number Of Spoons | 66 |
| Spoon Material | 16 Ga. hardened spring steel, Replaceable. |
| Spoon Spacing in forward travel | 6" |
| Spoon Penetration | 3" Depending on ground conditions and added weights. |
| Plug Size | 1/2" Diameter |
| Gang spacing | 4 1/2" |
| Number of Gangs | 11 |
| Frame Construction | Channel Formed 10 GA sheet |
| Hitch | Cat. 0, Cat. 1 & Cat. 1 limited |
| Quick Hitch | Fits Land Pride’s Quick Hitch Models QH05 and QH15 |
| Number of Support Stands | 3 |
