EasyCut B 950 Collect
The mower combination without conditioner but with merger Augers

• Light-weight and compact mowers without conditioners
• 9.45m working width including front mower
• Massive augers merge the swaths

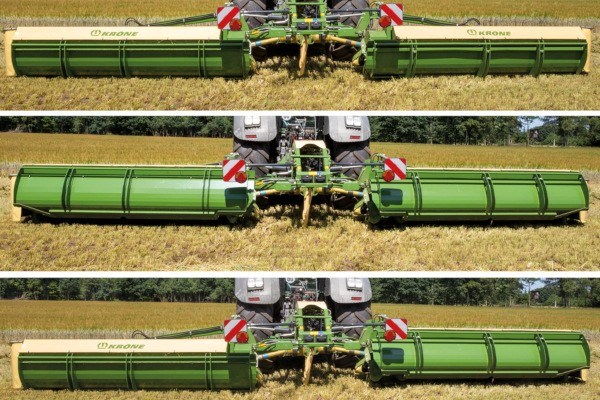

• Three swathing modes are selected from the cab: central swathing, independent swathing and no swathing
• Hydraulic mower suspension controlled from the cab

The EasyCut B 950 Collect is a very compact combination that has merger augers but no conditioners. The massive augers merge large volumes of crop such as green rye into a uniform and clean swath.

The sturdy 45 cm diameter cross augers are powered by a right-angle gearbox and revolve at a consistent speed of 750rpm, giving maximum efficiency and productivity. Arranged closely behind the cutterbars, these augers feed large volumes of crop in a consistent flow from the mowers to the middle of the combination, forming a tidy and uniform swath that is cleanly gathered by the following harvesters.

The decks behind the augers open and close hydraulically for convenient selection of one of the three swathing modes from the cab: swathing, independent swathing or no swathing.

The three-point hitch
The DuoGrip system suspends each unit in its centre of gravity and provides extra guidance by lateral arms for superior ground contour hugging. The rear lights can be raised hydraulically as an option to clear the way for more material to pass through this area. Lowered into transport position, they increase road safety.

The mowers lift out separately as a standard feature
Operators can raise one mower when cutting wedges. Simply select the mower that is not in work on the electric control box and raise it.

Variable cutting heights
The standard combi skids increase the cutting height from 50 mm to 120 mm and allow operators to cut different crops like grass and green rye at different heights

The hydraulic suspension
The EasyCut B 950 Collect mowers feature hydraulic suspension which allows operators to adjust contouring from the electric control box in the cab. The level of response is set steplessly and the current setting is indicated on a pressure gauge that is easily read from the cab – for best contouring even in very difficult conditions.

Hydraulic crop deflector
A hydraulic crop deflector is available for those who seek even more uniform swaths. When the B 950 Collect moves from road position to headland position the crop deflector is sequence controlled into its horizontal working position. This option is particularly useful in wedge-shaped plots or when one mower is not swathing.
