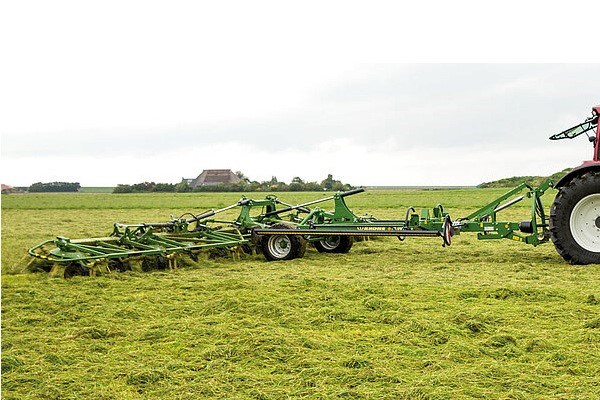

Krone KWT 1300

Rotary tedders

• Maintenance-free driveline with eight-finger OctoLink clutch
• Maintenance-free rotor gearboxes liquid-grease lubricated
• Hardwearing Super-C tines
• Special tines for the ­KRONE combing effect for cleanest sweeps
• Setting the angle of throw without tools for optimum forage quality
• ­KRONE border spreading system for accurate spreads up to the field edge
• Large choice of trailed ­KRONE rotary tedders
• High operator comfort: For reduced operator strain on long working

The trailed KTW rotary tedders cover up to 20 metres even when hitched to a lower-powered tractor. Equipped with their own transport chassis, these machines have a lower tractor power and lift power requirement. Multiple technical details make for safe for road travel and ensure great spreading and conditioning quality in the field.

The KRONE drives

OctoLink

• The maintenance-free eight-finger coupling
• Full drive power in any position

Rotor gearboxes

• Maintenance-free and liquid-grease lubricated
• Permanently lubricated for great longevity

When it comes to preparing wilted silage and hay, KRONE is the manufacturer that offers a large and extensive range of high-quality and dependable rotary tedders. These machines not only deliver high-quality work and feature a high level of standard specification but also boast a host of innovative features including maintenance-free OctoLink clutches and liquid-grease lubricated gearboxes to drive the rotors.

The KRONE rotors

• Sturdy tubular tine arms
• Uniform crop spread as the tine arms overlap generously
• Heavy-duty, hardwearing 9.5 mm Super C double tines with 5 coils
• Tines with different leg lenghts for the KRONE combing effect

Quality requires us to start with the basics. This is how we achieve high standards. The rotors on the KRONE rotary tedders are the ideal equipment to produce quality forage for on-farm use. Whether you’re producing hay or silage, these rotors deliver every time.

The guarantee for top-quality forage Optimal treatment

• Central border spreading control to the left and right
• Angle of throw adjustment without tools
• Accurate rotor control form large flotation castor wheels running in close vicinity of the tines

Thought-through details and high operator comfort boost the efficiency of your operation. The central border spreading facility ensures you are not wasting a single haulm along the boundaries. In addition, it allows you to spread uphill with the machine running at an angle to the tractor. The rotor tilt is adjusted without the need of tools for perfect adaptation to the current crop and yield.

KWT 1300 · KWT 1600 · KWT 2000 – Trailed 12/14/18-rotor machines

• 13.10 m to 19.60 m working width
• Small rotor diameter produces an optimum spread pattern
• Heavy-duty beams
• Maintenance-free OctoLink rotor drives
• Intelligent steering on KWT 1600 and KWT 2000

Making quality forage not only requires high-capacity mowers but also the right tedder. In terms of work rates, the KWT 1300, KWT 1600 or KWT 2000 is the perfect match for a high-capacity mower combination. It allows you to do the tedding pass in parallel with the mowing pass to achieve uniform wilts.

KWT 1300 – Further technical details

• Huge 13.10 m work width
• 12 rotors with 6 tine arms each
• Drawbar or three-point linkage attachment
• Automated transport/work changeovers
• Flexible rotor guidance, exact ground contouring

The KRONE KWT 1300 is the tedder for supreme quality forage. Pleasant to operate, the machine teds 13.10 m in one operation. Highly productive, it is yet gentle on the crop and soil but compact and safe in road travel.
