Krone EasyCut F 320 M

The EasyCut F model range

• 2.71 m - 4.04 m working widths
• Push-type or Pull-type cutterbar
• With or without conditioner
• Compact M models
• Models with powered swath drum
• EasyCut F 400 Fold and F 400 CV Fold with folding cutterbar

The EasyCut F series is a line-up of innovative front mounted mowers with or without tine or roller conditioner and work widths of 2.71 m to 4.04 m. At the same time, the range comprises particularly compact and light-weight front mounted mowers for mountain fields and applications. Powered swath drums are available for some models. These form narrow swaths that the tractor cannot straddle.

The KRONE cutterbar

• Fully welded: Robust, sealed and permanently lubricated
• The durable satellite drives have massive spur gears for quiet running and superior efficiency
• No inner shoe for trouble-free cutting

The enclosed and fully welded cutterbar meets the highest quality standards and operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress by very quiet and reliable running in sustained peak-load operation.

KRONE SmartCut for a perfect spread

• The wedge-shaped cutterbar guarantees clean cuts
• Heavy-duty spur gears run in widely-spaced double bearings
• Swathing or spreading depending on needs

The wedge-shaped cutterbar offers great flexibility to adjust through a large range of settings and leave a short stubble in meadows and pastures as well as long stubble in long-stemmed field crops. An EasyCut mower delivers a reliable performance and clean cut.

The KRONE quick-change blade system

• Quick-change blades allow operators to swap blades in the field quickly
• Modular disc design
• Minimum blade wear: 360° blade action
• Excellent cuts from KRONE SmartCut: Optimum blade overlap

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect disc arrangement for stripeless cuts.

The KRONE SafeCut system

• Full driveline protection for added reliability
• Neighbouring discs will not collide
• Wear-free
• Quick-change roll pins for minimum downtime and costs

Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers a maximum of protection and peace of mind. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is a base specification feature on all EasyCut F models.

EasyCut F 320 M · F 360 M · F 320 Push

• Close attachment to the tractor and compact on the road
• Adjustable ground pressure
• Perfect contouring, three-dimensional pivoting
• SmartCut and SafeCut cutterbars

Attaching to the link arms without A-frame, the EasyCut PUSH models are light-weight and compact and have stretched curtains. All EasyCut cutterbars are permanently lubricated and feature SmartCut and SafeCut.

EasyCut F 320 M · F 360 M · F 320 Pull

• For standard-fit hydraulic suspension
• Convenient ground pressure adjustment from the cab
• Perfect contouring from generous up- and rearward travel
• Front guards open wide for convenient servicing

KRONE front mowers with PULL headstocks are the perfect machines to cut extremely undulating terrain. Whether cutting flat or hilly land, they stand out for their enormous agility and generous up- and rearward travel.

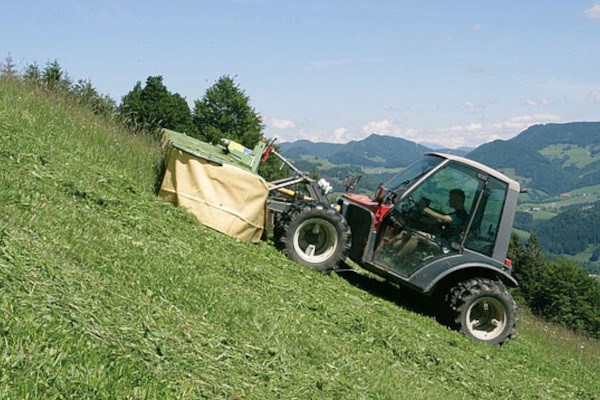

EasyCut F 280 M, F 320 M, F 360 M: Lightweight and compact

• Ideally suited for compact tractors in mountain regions
• Lightweight machines reduce the load on the front axle
• Compact design for good handling
• Centre-of-gravity mounting and pivot support

The front mounted 2.73 m EasyCut F 280 M, the 3.16 m F 320 M, and the 3.60 m F 360 M mowers from KRONE are the ideal mowers for mountain fields, boasting a compact design, a centre of gravity close to the tractor, a perfect cut on steep slopes and good attachment options for light-weight and compact mountain tractors.

EasyCut F 280 M, F 320 M, F 360 M: Mowing light

• Robust headstock and vertical travel
• Plenty of clear space for an unobstructed crop flow
• Pto-shaft driveline for frictional connections
• No spools required
• Two optional swathing drums for work on slopes

Light in weight (500 kg +), the EasyCut M front mowers perform effectively in any type of terrain. No spools required. Attachment and removal is quick and easy. The cutterbar is suspended right behind the outer hats – an ideal design that ensures a uniform crop flow.
