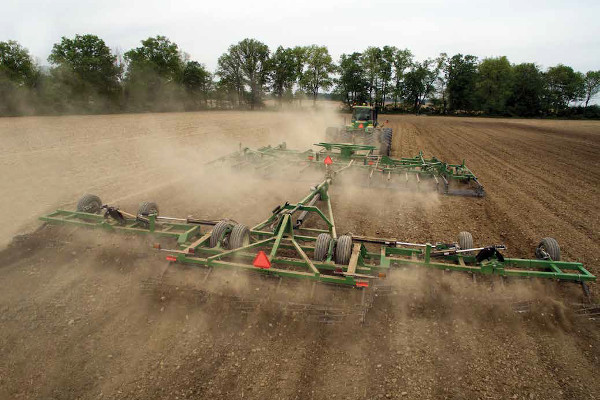

The New TF5S 5 Section Soil Conditioner With Double Twist Baskets The new Model TF5S 5-Section Soil Conditioners feature a double folding wing design that extends working widths from 44 to 63 feet, yet folds to within a 16’-6” transport width. The conditioners are designed to perform and built to last, putting more material where it counts to prevent excessive wear at critical stress points and maximize performance.

  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the TF5S

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the TF5S

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on TF5S

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

TF5S Features & Benefits

Premium GBGI Bearings

Heavy-duty GBGI bearings feature a sealed, cast hub-style housing with double roller bearings for extra durability to handle more side thrust and a heavier workload. The rubber-sealed hub caps and 3 piece "V seal" are optimal for keeping dirt and contamination away from the bearings during high speed usage. Snap rings hold the seals in place while allowing the bearings to be serviceable at a lower cost than replacing the entire assembly.

Down Pressure Springs

Standard down pressure springs give your baskets consistent down pressure, creating more uniform seedbeds.

Hydraulic Telescoping Tongue

All J&M Model TF5S Soil Conditioners come standard with a hydraulic telescoping tongue with spring latch to easily switch from "road-to-field" and "field-to-road" positions from the tractor.

Wing Wheels

Our wing wheels utilize phasing cylinders that allow the unit to lift and lower evenly.

Heavy-Duty Greaseless Hinges

J&M's standard, heavy-duty greaseless hinges are designed to withstand the most extreme conditions.

More Standard Features

  • Two rows of standard 13" diameter baskets with Double-Twist serrated bar design
  • 11L-15 new tires
  • Extendable tongue
  • Deluxe light package with SMV emblem
  • Rear storage jack

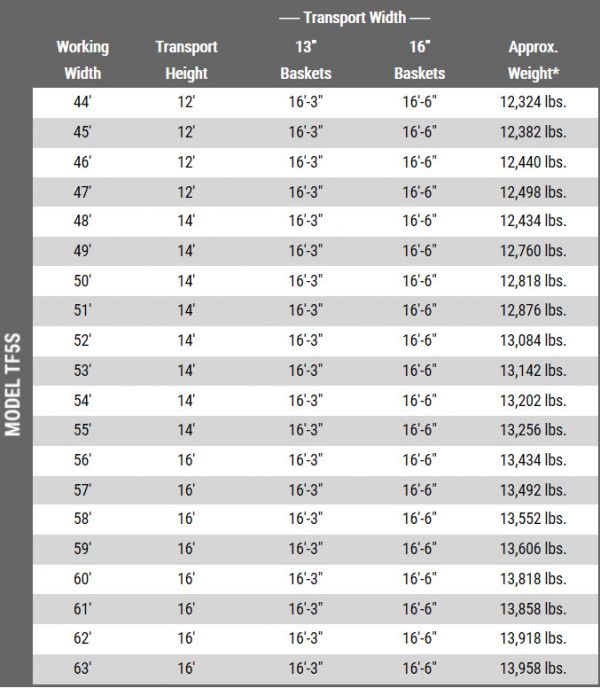

TF5S Specs & Compare

Working WidthTransport HeightTransport Width
13" Baskets		Transport Width
16" Baskets		Weight*
44'12'16'–3"16'–6"12,324 lbs
45'12'16'–3"16'–6"12,382 lbs
46'12'16'–3"16'–6"12,440 lbs
47'12'16'–3"16'–6"12,498 lbs
48'14'16'–3"16'–6"12,434 lbs
49'14'16'–3"16'–6"12,760 lbs
50'14'16'–3"16'–6"12,818 lbs
51'14'16'–3"16'–6"12,876 lbs
52'14'16'–3"16'–6"13,084 lbs
53'14'16'–3"16'–6"13,142 lbs
54'14'16'–3"16'–6"13,202 lbs
55'14'16'–3"16'–6"13,256 lbs
56'16'16'–3"16'–6"13,434 lbs
57'16'16'–3"16'–6"13,492 lbs
58'16'16'–3"16'–6"13,552 lbs
59'16'16'–3"16'–6"13,606 lbs
60'16'16'–3"16'–6"13,818 lbs
61'16'16'–3"16'–6"13,858 lbs
62'16'16'–3"16'–6"13,918 lbs
63'16'16'–3"16'–6"13,958 lbs
*Weight measured with 13" baskets
