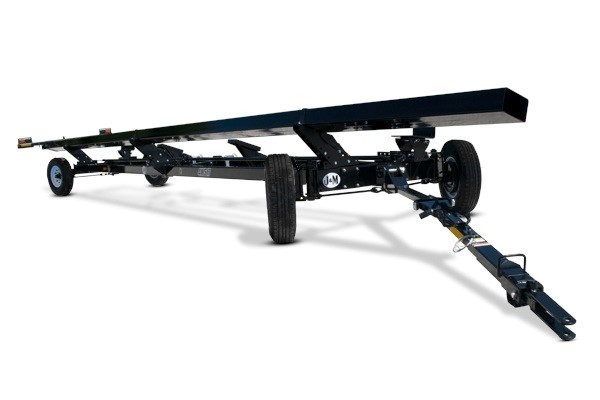

4WS17‑HD‑48 Features & Benefits

Arched Lower Beam

An arched lower beam with trussed understructure provides maximum support for large, heavy heads.

Additional Center Support

A support in the center of the transport improves alignment of front and rear axles and strengthens the upper bar for greater load capacity.

4WS16-HD / 4WS17-HD John Deere HD and RD Draper Heads

  • 16' or 17' Turning Radius
  • 86" Center Tread Width
  • 8 Hole Hub
  • 38' (4WS16-HD), 42' (4WS16-HD), 48' (4WS17-HD), or 52' (4WS17-HD) Steel Upper Bar
  • Larger 6"×10" Upper Bar
  • Quick Hitch Tongue with Spring Assist
  • Adjustable Mounts
  • Patented Tie-Down Brackets with Hook and Strap Assembly
  • Light Package
  • Hinged Tongue
  • 16"×6" or 17½"×6¾" Wheels and 235/85R16E, 235/85R16F, or 215/75R175H Tires

4WS17‑HD‑48 Specs & Compare

MODEL 4WS17‑HD‑48
Weight 4,584 lbs
Capacity (Net) 12,800 lbs
Spindle Size 2" Diameter
Wheel Size 16"×6"-8 Bolt
Tire Size 235/85R16F
Steel Upper Bar 6"×10"
Upper Bar Length 48'
Box Channel Axle Frame 8"



JM 4WS SpecsDiag
