Features

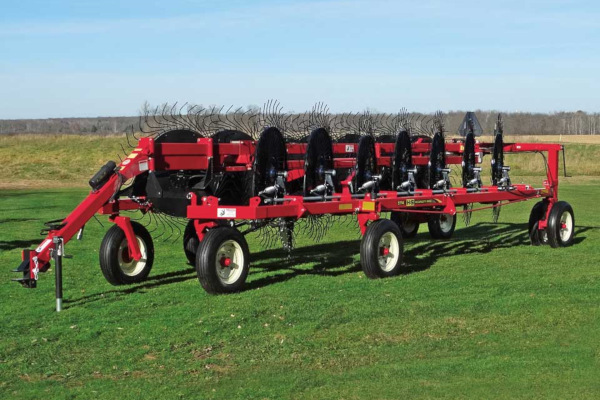

- H&S 5114 & 5116 hi-capacity wheel rakes have the raking wheels positioned ahead of the rake arms, main frame beams and transport wheels. coupled with a high and wide end of frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
- A brake band on each front gauge wheels can be easily adjusted to field conditions.
- Large independent 60" rake wheels with “Bee Hive” style spring suspension follow the contours of the ground smoothly.
- A large diameter rake wheel hub is used for added strength to the rake wheel dish.
- The adjustment for the ground pressure on the rake wheels allows the operator to fine tune the 5114 and 5116 wheel rakes to fit varying conditions.
- The rake arms feature 2 ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
- The 60″ diameter rake wheels turn slower for less tooth wear and deliver more capacity.
- The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
- Independent articulated rake beams have the flexibility to flex 3′ up, or 3′ down.
- Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.
- Raking widths can be hydraulically adjusted in any position up to the pre-determined raking width. Setting the spring loaded stop allows you to set pre-determined raking widths up to 28′ on the 5114, and 32′ on the 5116.
- Rake wheel wind boards are standard on the 5114/5116 Rakes.
- A 2 or 3 wheel center kicker wheel assembly is optional.
Specs
| 5116 | |
| WHEEL DIAMETER | 60″ |
| TEETH PER WHEEL | 40 |
| TOOTH DIAMETER | 7.5mm |
| TRANSPORT WIDTH | 8′ 8″ |
| TRANSPORT LENGTH | 30′ 3″ |
| WINDROW WIDTH ADJUSTMENT | 38″- 58″ |
| RAKING WIDTH | UP TO 32′ HYD. SET. |
| RAKING WHEEL HUBS | BALL BEARINGS |
| WING FLEX | 3′ UP OR DOWN |
| NUMBER OF TRANSPORT WHEELS | 8 |
| HITCH JACK | STANDARD |
| GAUGE WHEELS | 15″ |
| TRANSPORT WHEELS | 15″ |
| WEIGHT | N/A |
| DUEL CENTER KICKER WHEELS | Optional |
| TRIPLE CENTER KICKER WHEELS | Optional |
| 60″ RAKE WHEEL WIND BOARDS | Optional |
| TRANSPORT LIGHTING & POWER CORD | Optional |
| SAFETY CHAIN | Optional |
