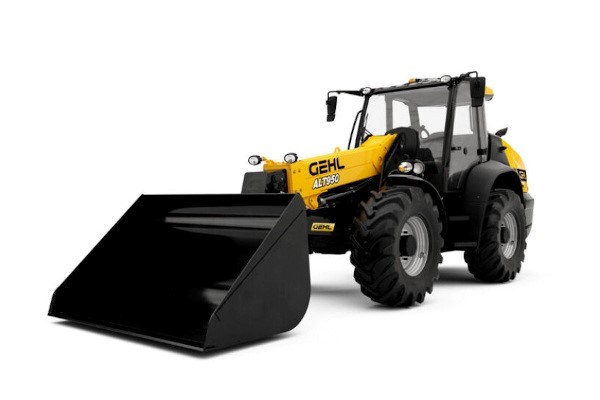

For jobs on construction or agricultural sites that demand the highest lift and maneuverability offered by an Articulated Loader, the ALT950 gets it done like no other. But don't let the size of this heavy-duty machine intimidate you. Intuitive controls make its telescopic boom easy to use, and a raised seating position delivers both improved safety during operation and unmatched visibility during dirty jobs. Working as hard as you do, the ALT950 represents your chance to reach new heights, get more done, and safely get you home at the end of the day—and maybe even a little early.

Static tipping load with forks (straight):  10975 lb
Engine power (kW):  105kW
Overall width:  7 ft 6 in
Overall length to carriage (without hitch):  18 ft 9 in

  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the ALT950

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the ALT950

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on ALT950

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

ALT950 Features & Benefits

Key Features

  • CVT Transmission
  • Multi-Function Joystick
  • Improved Visibility
  • 2D Articualtion
  • Rear Axle Oscillation
  • Spacious Cabin
  • Air-Conditioned Cab
  • 143 hp Deutz Engine
  • 158 L/min. Hydraulic Flow
  • Hydraulic Locking System Attachment Mount
  • Continuous Flow
  • ECO Mode

ALT950 Specs & Compare

CapacitiesImperial
Static tipping load with forks (straight)10975 lbs
Static tipping load with forks (full turn)9143 lbs
Max. payload with forks as per EN 474-3 (80%)7275 lbs
Max. lifting height (below forks)17 ft 1 in
Max. outreach10 ft 10 in
Reach at max. height3 ft 11 in
Breakout force with bucket6730 daN
Static tipping load with pallet forks - Straight with cab10975 lbs
Weight and dimension
Unladen weight (with forks)18717 lbs
Ground clearance1 ft 3 in
Overall length to carriage (with hitch)18 ft 9 in
Overall length to carriage (without hitch)18 ft 9 in
Wheelbase8 ft 2 in
Overall width (over tyres)7 ft 6 in
Overall height with cab8 ft 10 in
Tilt-up angle9 °
Tilt-down angle156 °
External turning radius (over tyres)13 ft 9 in
Articulation angle44 °
Standard tyresAlliance - A580 - 460/70 R24 159A8
Ground clearance1 ft 3 in
Performances
Crowd3.50 s
Dump2.70 s
Engine
Engine BrandDeutz
Engine modelTCD 4.1 L4
Number of cylinders / Capacity of cylinders4 - 246 in³
I.C. Engine power rating / Power (kW)143 Hp / 105 kW
Max. torque / Engine rotation406 ft/lbs / 2300 rpm
Engine cooling system3 water radiators + air + hydraulic oil
Transmission
Transmission typeM-Varioshift
Travel speed (laden)25 mph
Max. travel speed (may vary according to applicable regulations)25 mph
Differential lockLimited slip differential on front & rear axles
Parking brakeManual
Hydraulics
Hydarulic pump typeVariable displacement pump
Hydraulic flow - Pressure42 US gpm / 3916 PSI
Tank capacities
Hydraulic oil40 US gal
Fuel tank40 US gal
Diesel Exhaust fluid (AdBlue® type)3 US gal
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm72 dB(A)
Noise to environment (LwA)107 dB(A)
Vibration to whole hand/arm< 2.52 m/s²
Miscellaneous
Safety cab homologationCabin ROPS - FOPS Level 2
